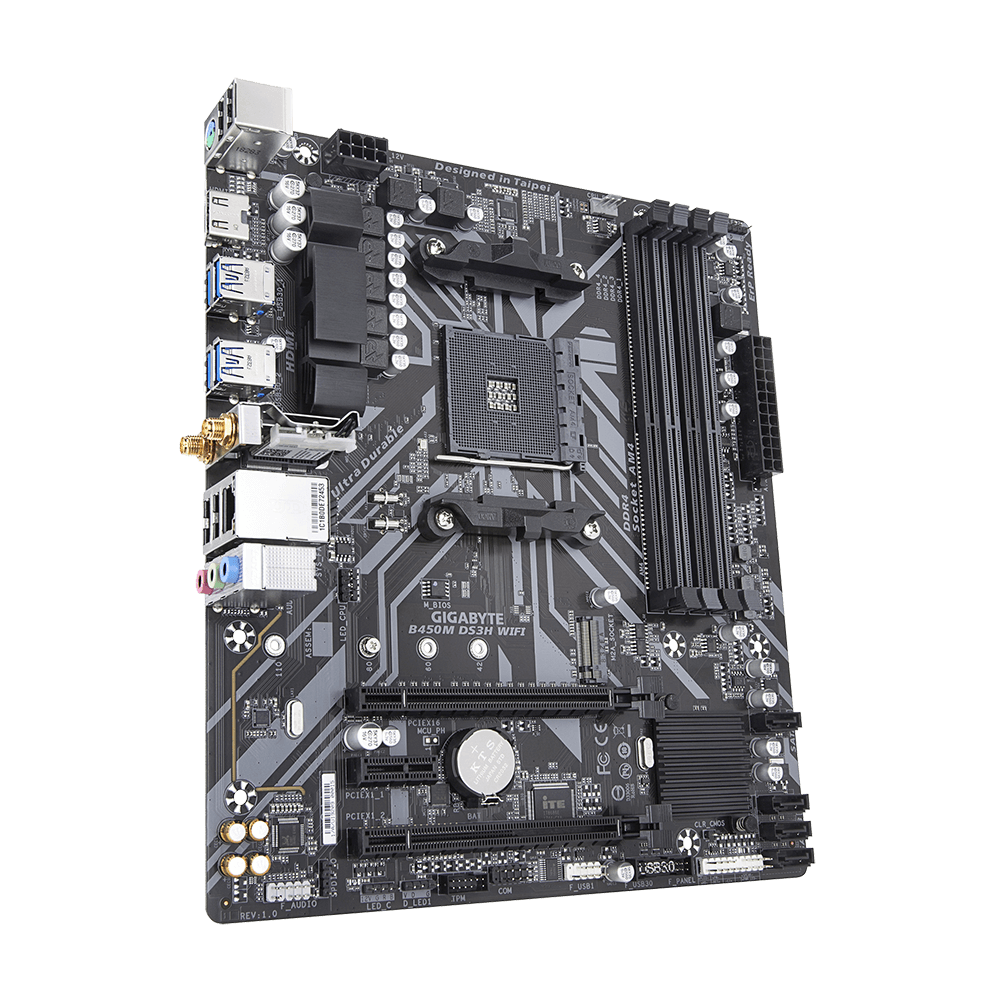

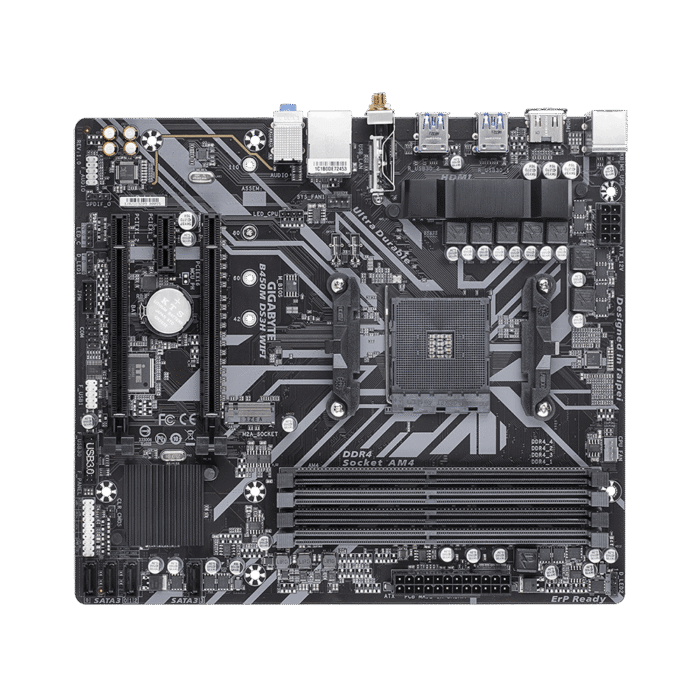

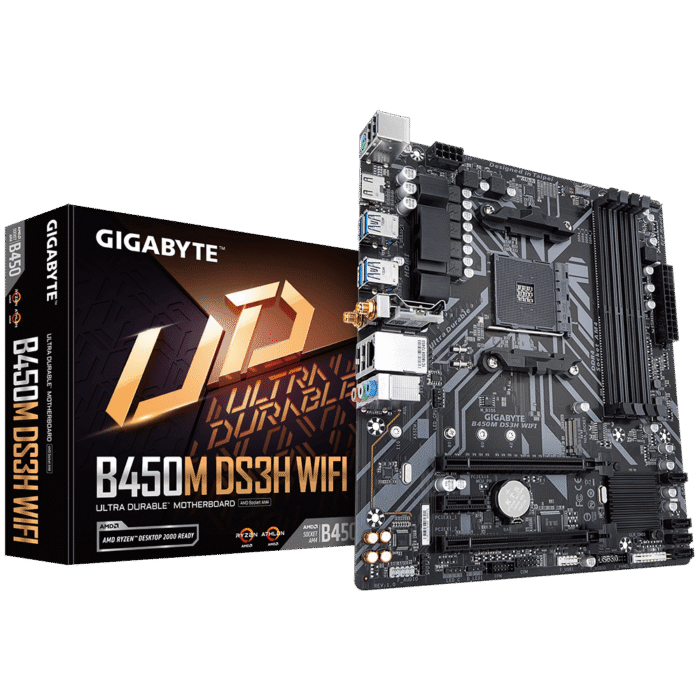

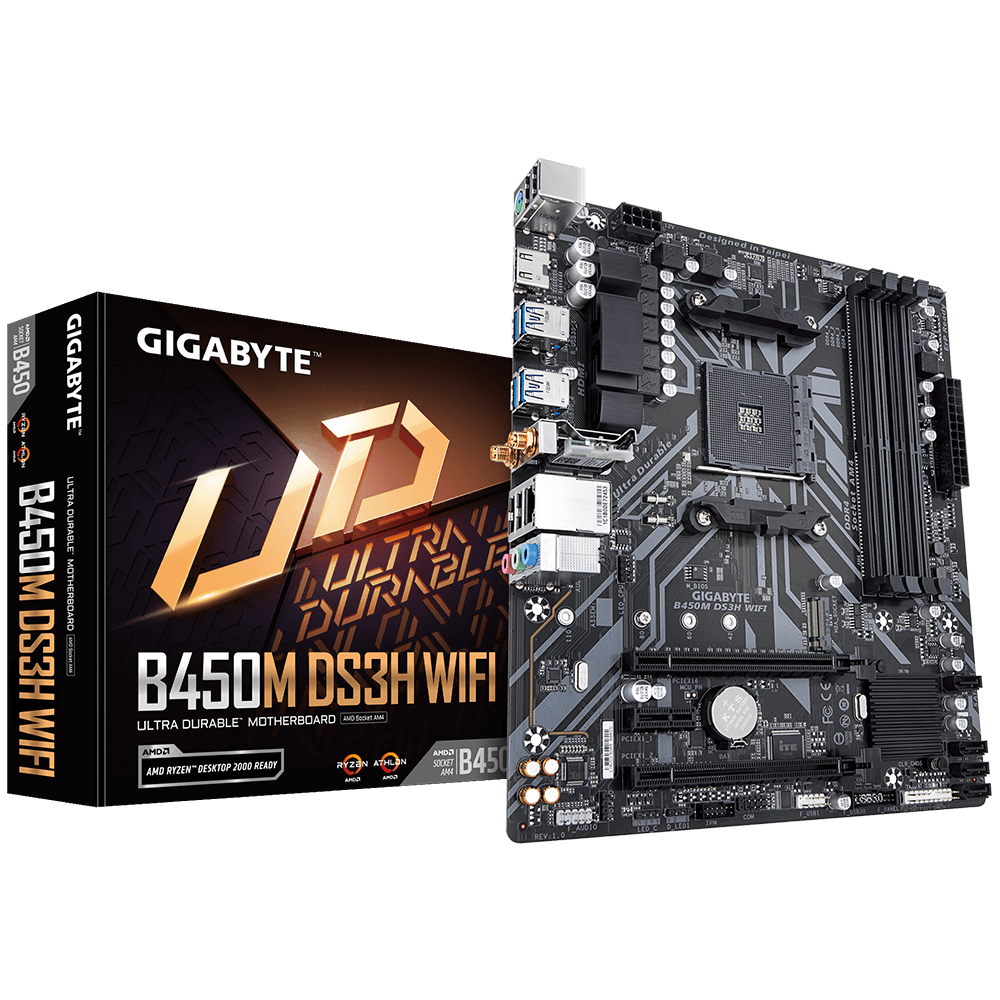

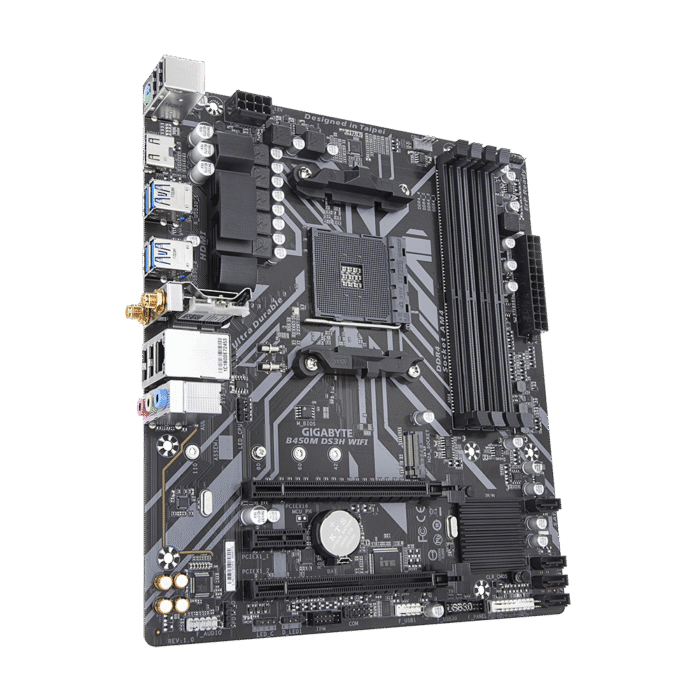

GIGABYTE B450M DS3H WIFI DDR4 Micro-ATX Motherboard

The GIGABYTE B450M DS3H WIFI is a feature-rich, compact Micro‑ATX motherboard designed for AMD AM4 processors, offering excellent performance and connectivity in a reliable, value-focused package. Ideal for gamers, creators, and everyday users building a powerful yet budget-friendly PC.

Ultra-Durable Build & Protection

• Anti-sulfur resistor design on all resistors protects against environmental degradation, increasing longevity—especially valuable in humid climates.*All-solid capacitors and reinforced Ultra Durable™ armor on PCIe and DIMM slots** offer enhanced electrical stability and mechanical reinforcement.

Optimized Power Delivery

• Implements a 4+3 phase Hybrid Digital PWM VRM with low RDS(on) MOSFETs and solid-pin 24-pin & 8-pin CPU connectors, enabling smooth power flows ideal for moderate overclocking.

Smart Cooling & Thermal Monitoring

• Equipped with Smart Fan 5/6 tech, featuring multiple temperature sensors and hybrid fan headers (DC/PWM auto-detect), enabling preset or custom fan curves via GIGABYTE’s FAN STOP app—ensuring silent operation in low load.

Gaming & VR Ready

• Supports Direct VR-optimized setups, pairing Ryzen CPUs with graphics cards (e.g., GTX 1050/R9 290 or higher) via HDMI 1.4 output. GIGABYTE specifically certifies VR support on this B450 chipset board.

RGB Flexibility & Design Customization

• RGB Fusion 2.0 supports up to 2 standard RGB and 2 ARGB (addressable) headers, enabling multi-zone lighting control and synchronization with compatible peripherals.

Advanced Storage Capabilities

• Features a 110 mm PCIe Gen3 x4 M.2 slot, supporting both NVMe SSDs and M.2 SATA—and even RAID 0/1/10 configurations—boosting boot speeds and data throughput.

• Leverages AMD StoreMI technology to intelligently combine SSD and HDD storage, accelerating frequently used files while maintaining capacity.

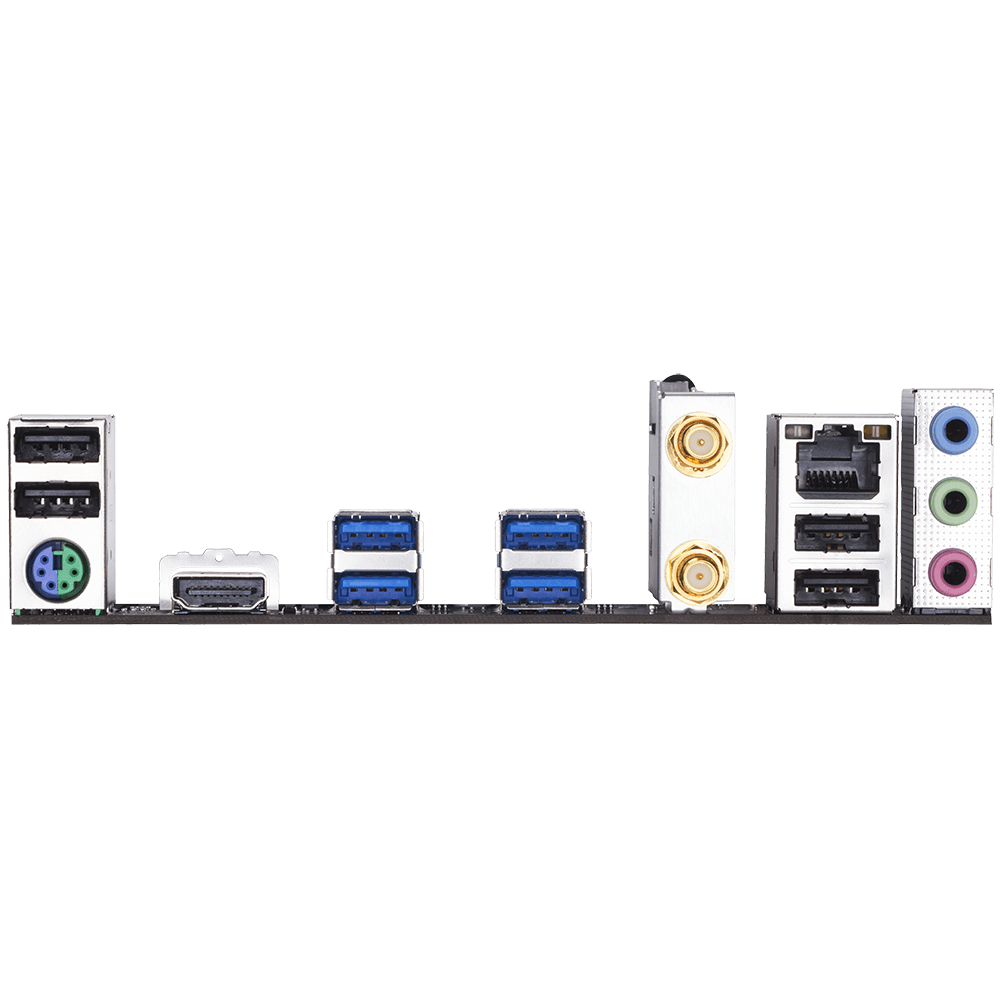

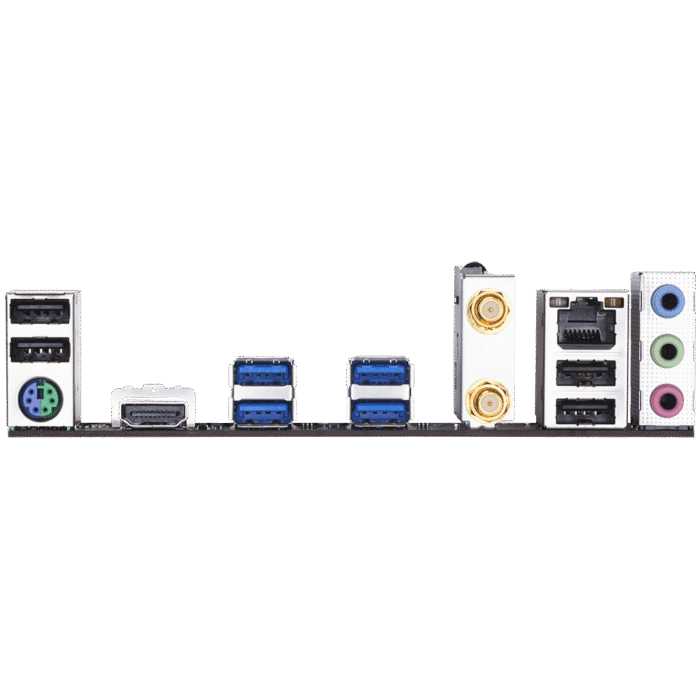

Comprehensive Connectivity

• Intel Dual-Band 802.11ac Wi‑Fi module supporting 2.4/5 GHz @433 Mbps + Bluetooth 4.2, ideal for wireless peripherals and network flexibility.

• Realtek Gigabit LAN enhanced with cFosSpeed traffic-shaping for reduced latency during gaming or streaming.

High-Fidelity Audio

• Powered by Realtek ALC887 codec, enhanced with high-quality audio capacitors and an LED-traced audio noise guard, ensuring cleaner sound stages and minimal crosstalk.

Expansion & Compatibility

• Offers a rare multi-slot layout on Micro-ATX form (24.4 × 21.5 cm):

  • 1× PCIe 3.0 x16 (full-speed)

  • 1× PCIe 2.0 x4 (in x1 slot format)

  • 1× PCIe 2.0 x1 for additional cards & utilities

• Four DDR4 DIMM slots support up to 128 GB at up to DDR4‑3600 (OC), with ECC mode (unbuffered) also supported in non-ECC mode.

Convenience Features & Utilities

• Clear CMOS jumper and TPM header, ideal for system resets and future security or remote management.

• Onboard PS/2 combo port, serial header, and S/PDIF Out, providing legacy and multi-audio options.

• Utilizes a stable AMI UEFI BIOS (128 Mbit) with full support for Q-Flash, Xpress Install and resizable BAR, offering simplified updates and setup.

✅ Why Choose B450M DS3H WIFI?

This motherboard strikes an excellent balance between features, performance, and price. It supports modern Ryzen CPUs, offers fast NVMe storage, includes built-in Wi‑Fi + Bluetooth, and provides flexible cooling and RGB options—all wrapped in GIGABYTE’s robust, durable design. It’s a great foundation for gamers, content creators, and general users seeking reliable system building with room for upgrades.
