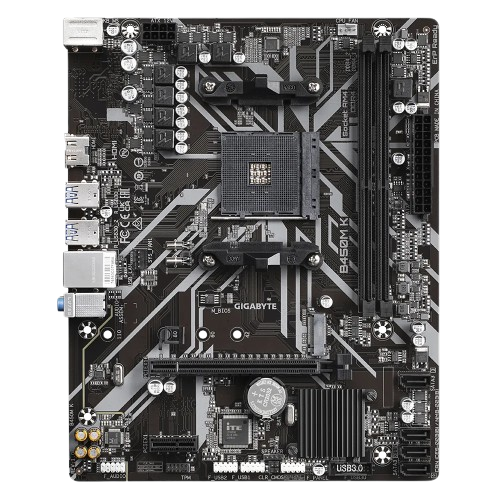

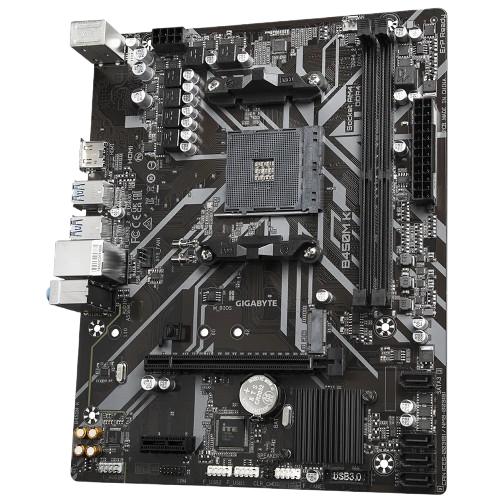

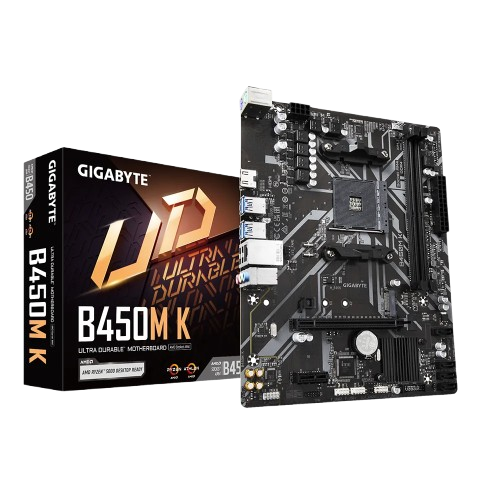

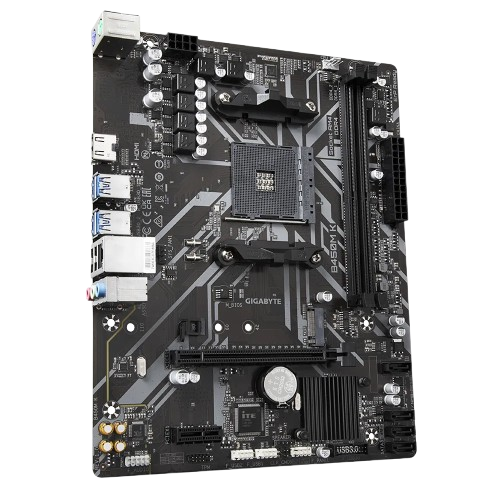

GIGABYTE B450M K DDR4 Micro ATX Motherboard
8,500.00৳
- Model: B450M K
- Supported CPU: Ryzen 5000/ 5000 G/ 3rd/ 2nd/1st Gen Processors for Socket AM4
- Supported RAM: 2 x DDR4, up to 64GB, 3600(O.C.)
- Graphics Output: 1 x HDMI port
- Features: 1 x M.2 Slot, Realtek GbE LAN
- Warranty: 3 Years
GIGABYTE B450M K (rev. 1.0) – AMD AM4 Micro ATX Motherboard
A reliable, budget-friendly foundation for users building a capable AMD system without breaking the bank. The B450M K offers essential features and industry-leading durability for everyday computing and light gaming.
🧩 CPU & Memory Compatibility
-
Supports AMD AM4 socket CPUs, including:
-
Ryzen™ 5000/5000 G-series
-
Ryzen™ 4000 G-series, 3000, 2000, 1000 series
-
Athlon™ with Radeon™ Vega Graphics
-
-
Dual‑channel DDR4 memory with two DIMM slots, up to 64 GB (32 GB per slot)
⚡ Storage & Expansion
-
One M.2 slot (PCIe Gen3 x4 / SATA) up to 22110 form factor for high-speed NVMe SSDs.
-
Four SATA III 6 Gb/s ports for additional drives.
-
Expansion via one PCIe 3.0 x16 and two PCIe 2.0 x1 slots.
🌐 Networking & USB
-
Realtek Gigabit Ethernet with bandwidth management, ensuring steady, low-latency network performance.
-
Front-panel USB 3.1 Gen1 and USB 2.0 ports provide versatile connectivity.
🎧 Audio & Displays
-
8-channel HD audio with high-end audio capacitors and an Audio Noise Guard to minimize interference.
-
Display outputs: HDMI and D‑Sub deliver crisp video, including support for up to 4K via HDMI.
❄️ Cooling & Thermal Management
-
Smart Fan 5 support: 2 hybrid fan headers, five onboard temperature sensors, and intelligent fan-stop functionality for quiet and efficient cooling.
🛡 Durability & Protection
-
Ultra Durable Design:
-
Anti-sulfur resistant components protect against chemical corrosion.
-
Glass-fabric PCB resists moisture to enhance longevity.
-
Surge and ESD protection with anti-surge ICs and double-locking brackets on ports for increased reliability.
-
🛠 BIOS & Utility Features
-
Unified BIOS and Windows-based utilities:
-
@BIOS: Easy Windows-based BIOS updates and backup.
-
EasyTune™ and System Information Viewer: Streamlined tuning, monitoring, and fan control.
-
GIGABYTE App Center: Centralized access to all utilities.
-
🧰 Other Highlights
-
Form factor: Micro ATX (244 × 195 mm) – fits compact ATX cases.
-
Supports Windows 10 and 11 (64-bit), plus optional Windows 7 with specific CPUs .
-
Built-in power and thermal efficiencies via low RDS(on) MOSFET design.
✅ Why Choose the B450M K?
For builders seeking a dependable, no-frills motherboard that provides full compatibility with modern Ryzen processors, solid storage options, integrated display outputs, smart cooling, and GIGABYTE’s renowned durability, the B450M K is a strong contender. It delivers feature-rich performance at an approachable price without compromise on build quality or expandability.
CPU Support |
Socket: AMD AM4 |
---|---|
Memory |
Slots: 2 x DDR4 DIMM |
Expansion Slots |
1 x PCIe 3.0 x16 Slot |
Storage Interfaces |
1 x M.2 Connector |
Graphics Output |
1 x HDMI Port |
Audio |
Realtek® ALC887 Codec. |
Networking |
Realtek® Gigabit LAN (10/100/1000 Mbps) |
BIOS & Firmware |
DualBIOS™ (UEFI BIOS with Backup). |
Form Factor |
Micro ATX (24.4 cm x 21.5 cm) |
Cooling & Power Design |
Hybrid Fan Headers with Smart Fan 5 Control. |

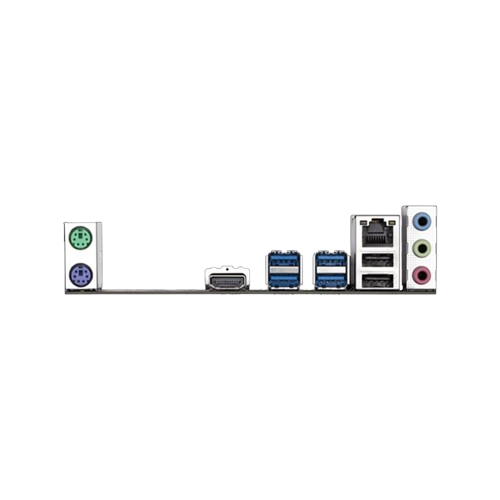

Rear I/O Panel |
1 x PS/2 Keyboard/Mouse Port (Legacy support) |
Internal Connectors |
1 x 24-pin ATX Main Power Connector |
