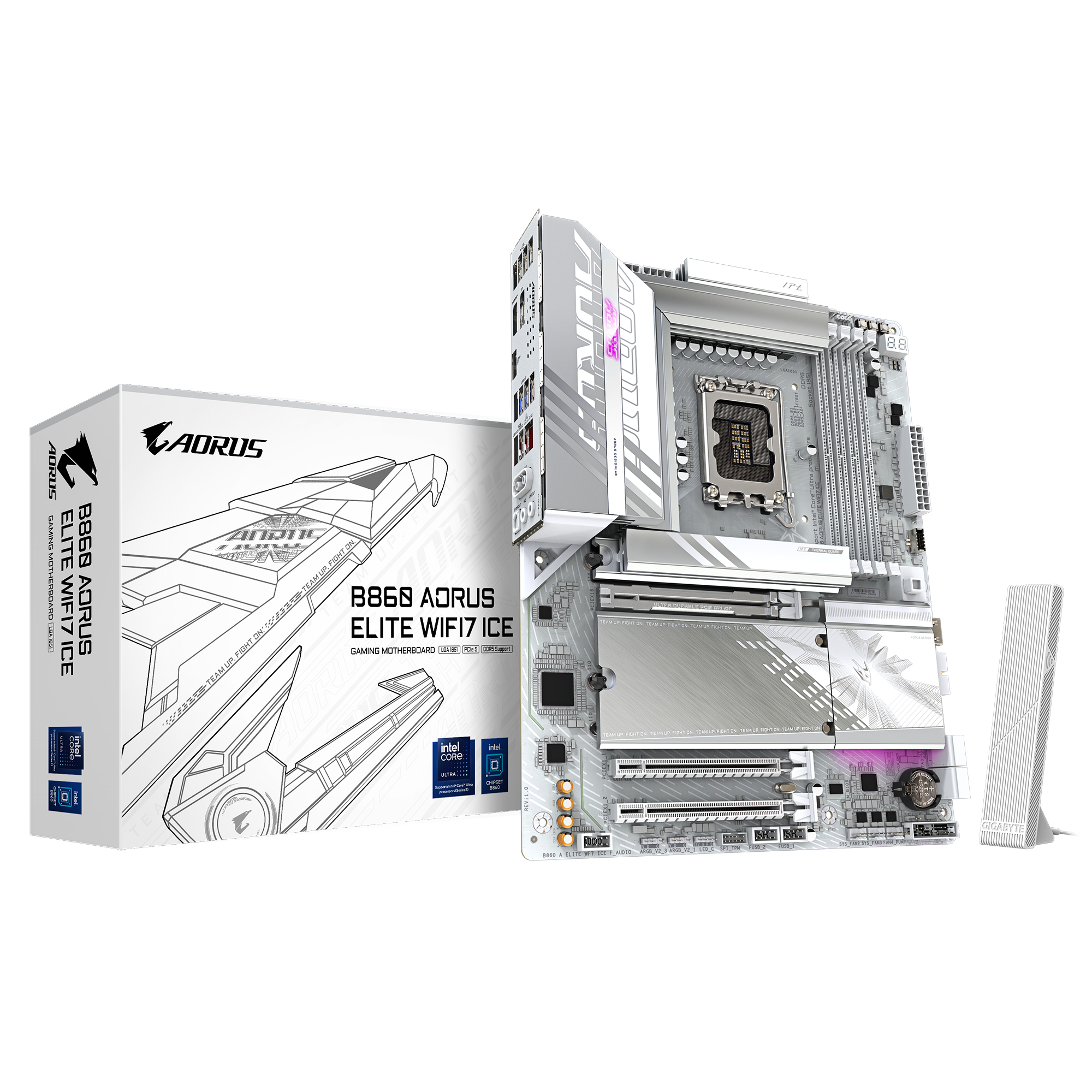

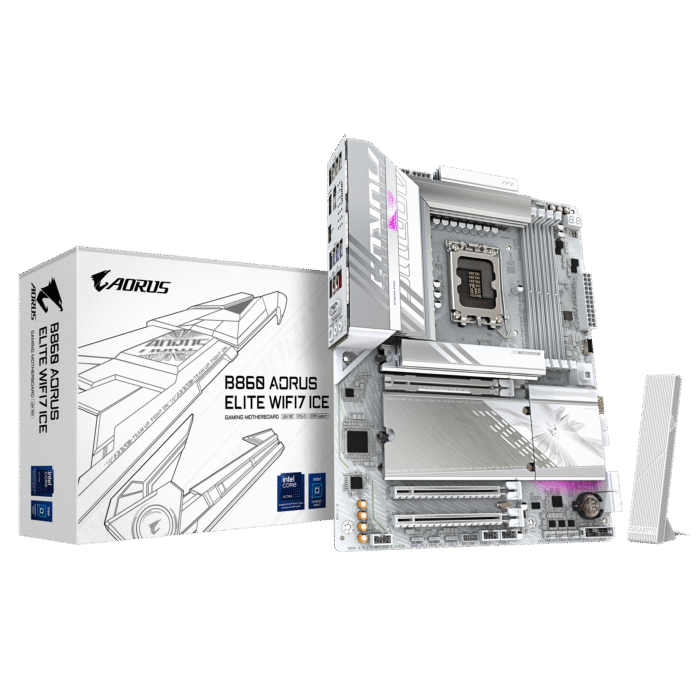

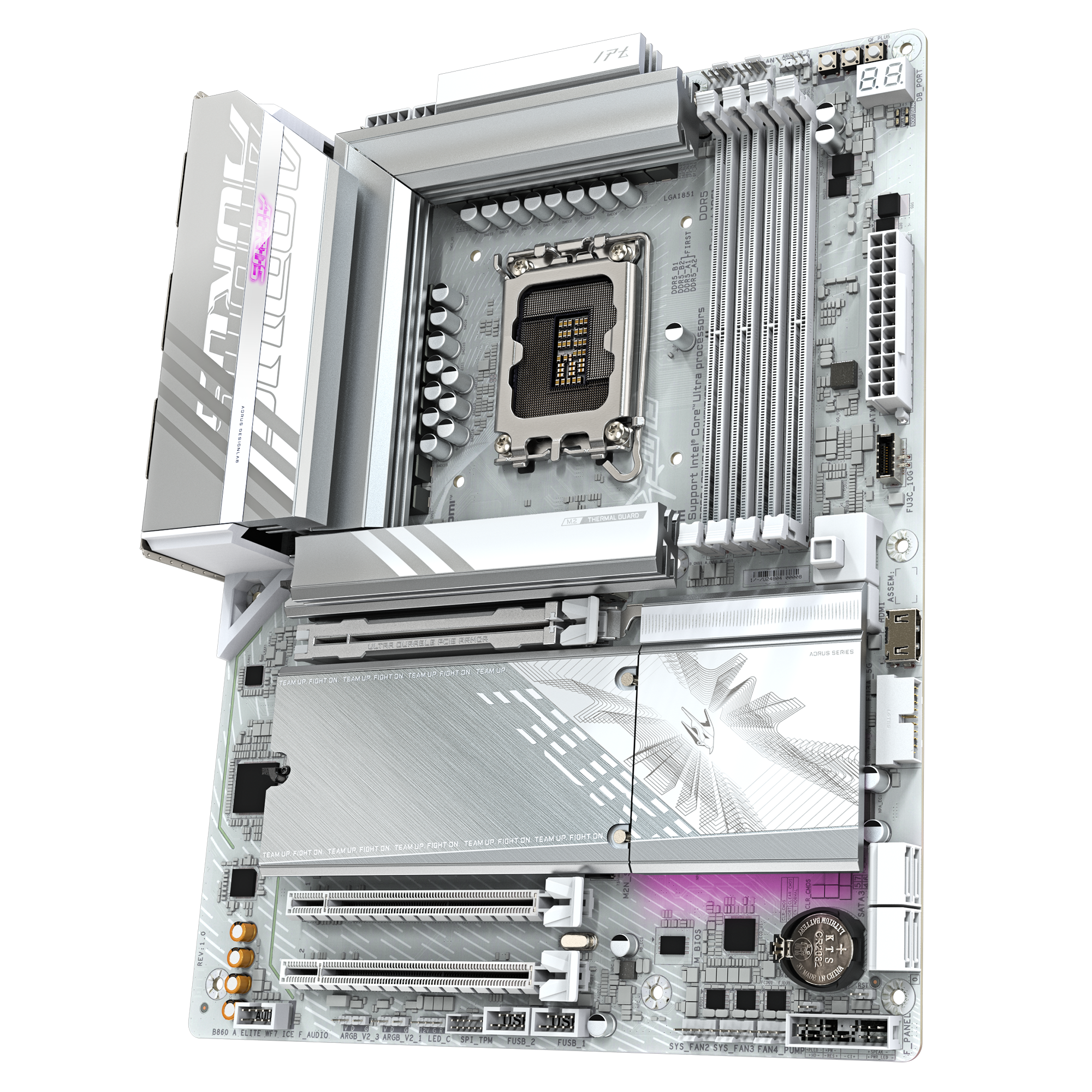

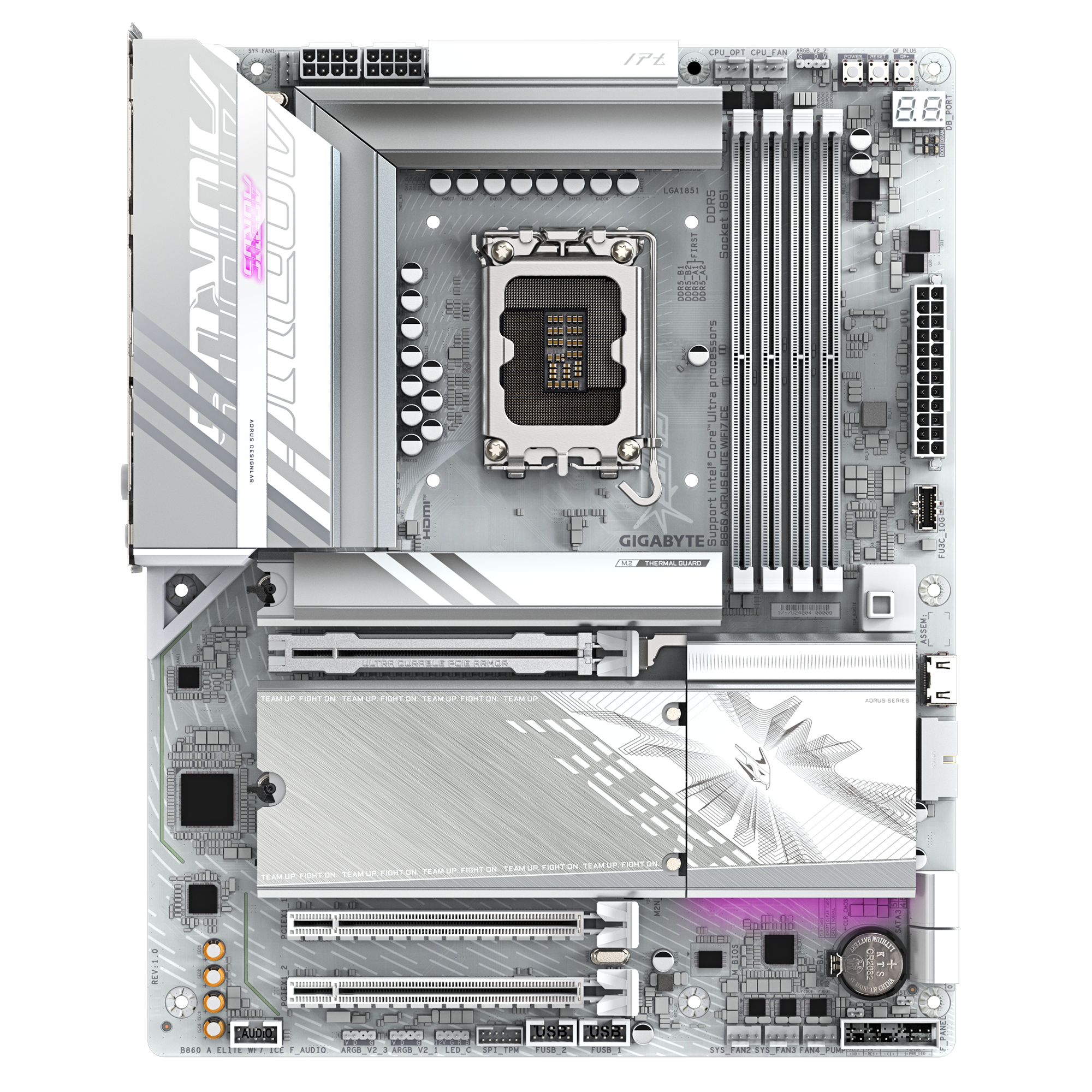

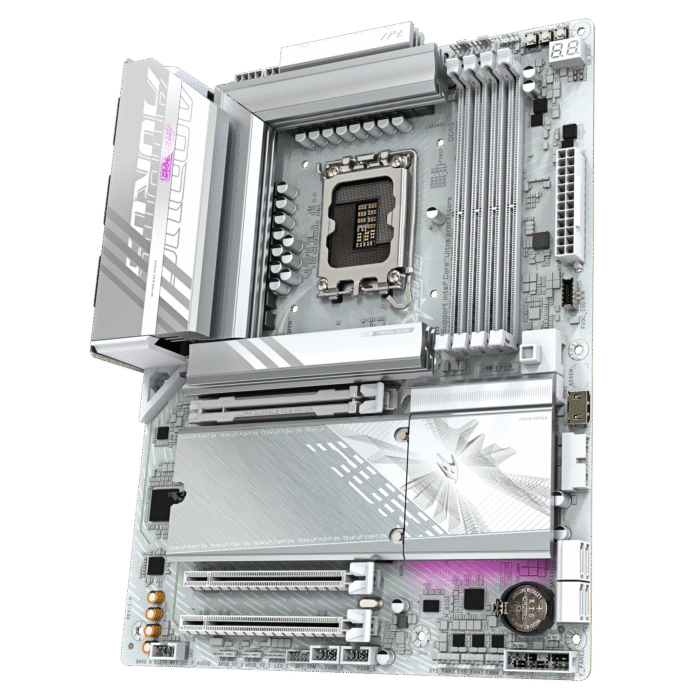

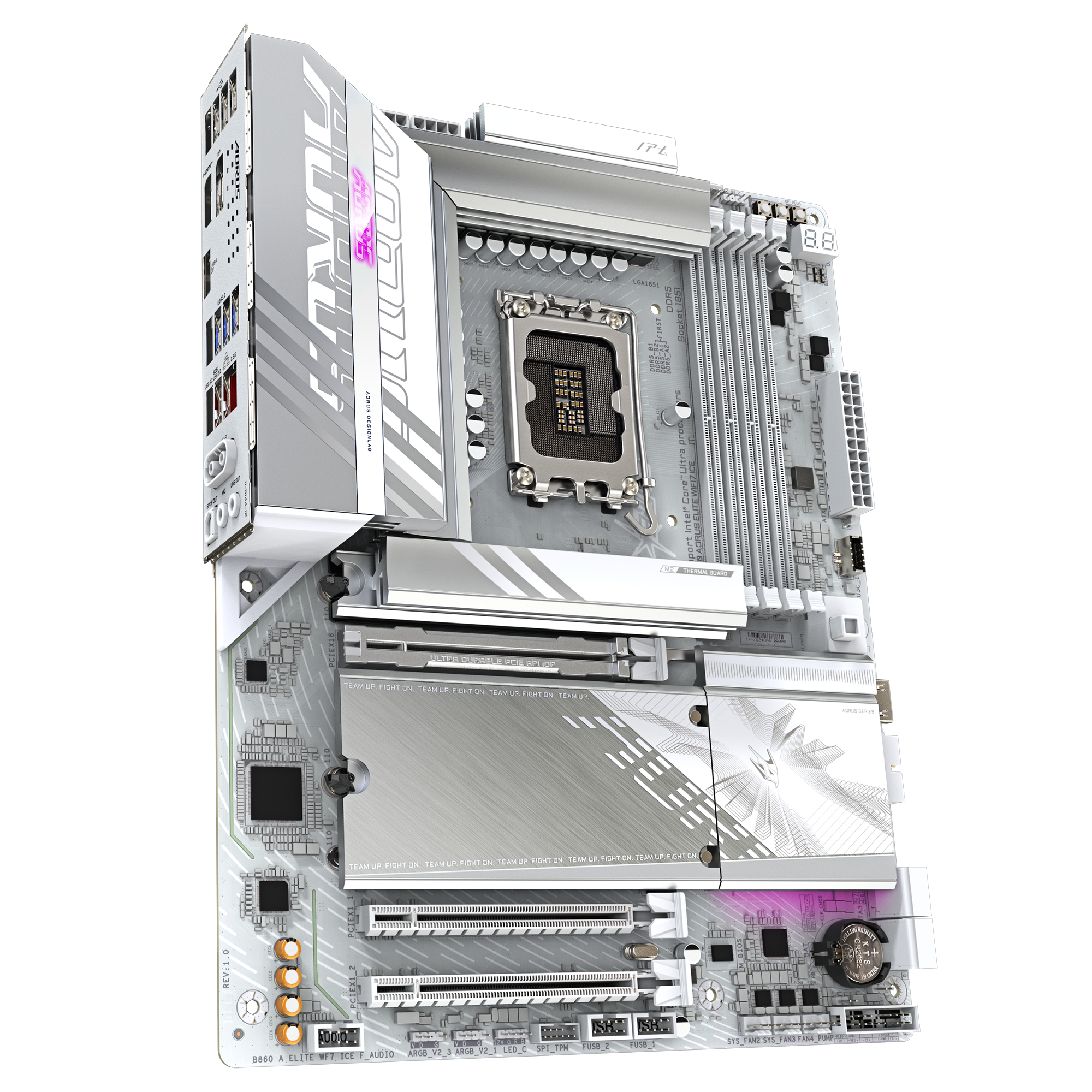

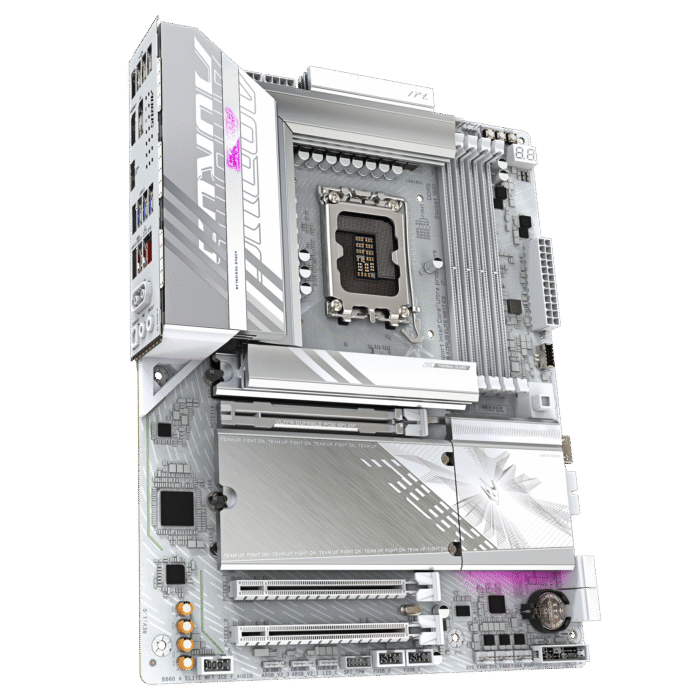

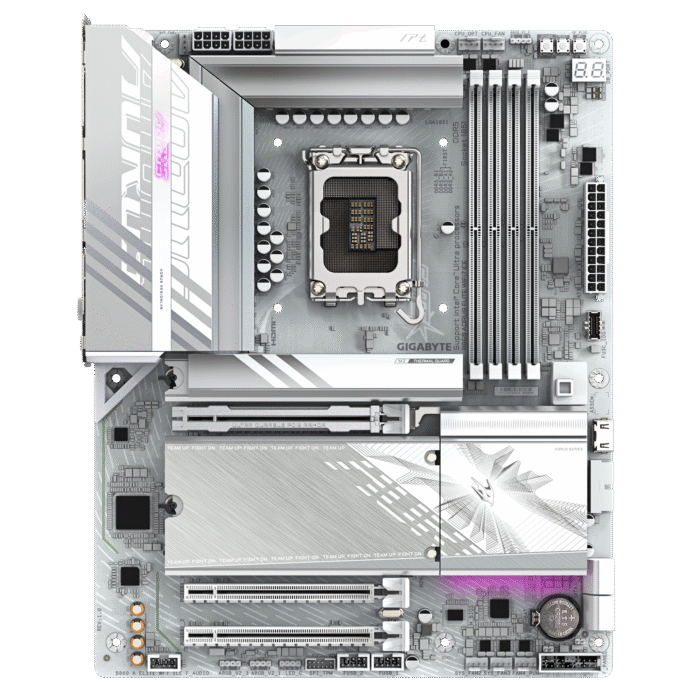

Gigabyte B860 AORUS ELITE WIFI7 ICE LGA1851 ATX Motherboard

37,000.00৳

Key Features

Model: Gigabyte B860 AORUS ELITE WIFI7 ICE
CPU Support: Intel® Core™ Ultra Processors (LGA1851 socket)
Chipset: Intel® B860 Express
Memory: 4× DDR5 DIMM slots, up to 256GB, DDR5-9200(O.C), XMP 3.0
Networking: Wi-Fi 7 (802.11be), Bluetooth 5.4, 2.5 GbE LAN
Warranty: 3 Years

Add to compare

Add to wishlist

Category: Motherboard

Description

Experience next‑generation performance and elegance with the B860 AORUS ELITE WiFi7 ICE – Gigabyte’s premium ATX motherboard engineered for the latest Intel® Core™ Ultra (Series 2) processors. Built on the Intel® B860 chipset, it delivers a full suite of cutting-edge features in a stylish white aesthetic.

CPU & Power Delivery

Intel LGA 1851 socket for Core Ultra Series 2 CPUs, backed by a dual-digital “twin VRM” design featuring 14+1+2 DrMOS phases (60A on VCORE & VCCSA, 40A on VCCGT) for stable, efficient power under heavy loads
Ultra-Durable 6‑layer PCB reinforced with 2× copper for enhanced signal integrity and thermal performance

Memory & Overclocking

Supports up to 256 GB DDR5, across four DIMM slots, with official overclocking support reaching DDR5-9200 MT/s (OC) and full XMP 3.0 compatibility
Features D5 Bionic Corsa and XMP Booster: AI-enhanced one-click tuning for CPU and RAM, drawing from an embedded database and delivering up to +7% memory and +5% CPU gains with power-efficient performance

Cooling & AI Protection

Built with heavy-duty VRM heatsinks, M.2 Thermal Guard + Ext., and MOSFET Armor, plus Smart Fan 6 controls for cooling optimized through PWM/DC support
AI-powered overclocking with AORUS AI SNATCH supports safe tuning, with protections like OTP, OCP, OVP, SCP, UVP, and OPP safeguarding your build

Storage & Expansion

3× M.2 slots: 1× PCIe 5.0 x4 (M2A_CPU), 2× PCIe 4.0 x4 (M2Q_SB, M2N_SB) – ideal for blazing fast NVMe SSDs
1× PCIe 5.0 x16 slot (supports both GPUs and M.2 drive via adapter), plus 2× PCIe 4.0 x1 for add‑ons .
4× SATA 6 Gb/s ports with RAID support (0/1/5/10) for versatile storage configurations

Connectivity

Rear USB4® Type‑C port offers up to 40 Gbps and DisplayPort alt‑mode for crisp up to 4K@144 Hz output
Additional I/O: USB 3.2 Gen 2×2 front header, dual USB 3.2 Gen 2 and Gen 1 ports, and eight USB 2.0 ports
Video outputs include HDMI and DisplayPort, supplementing CPU-integrated graphics .

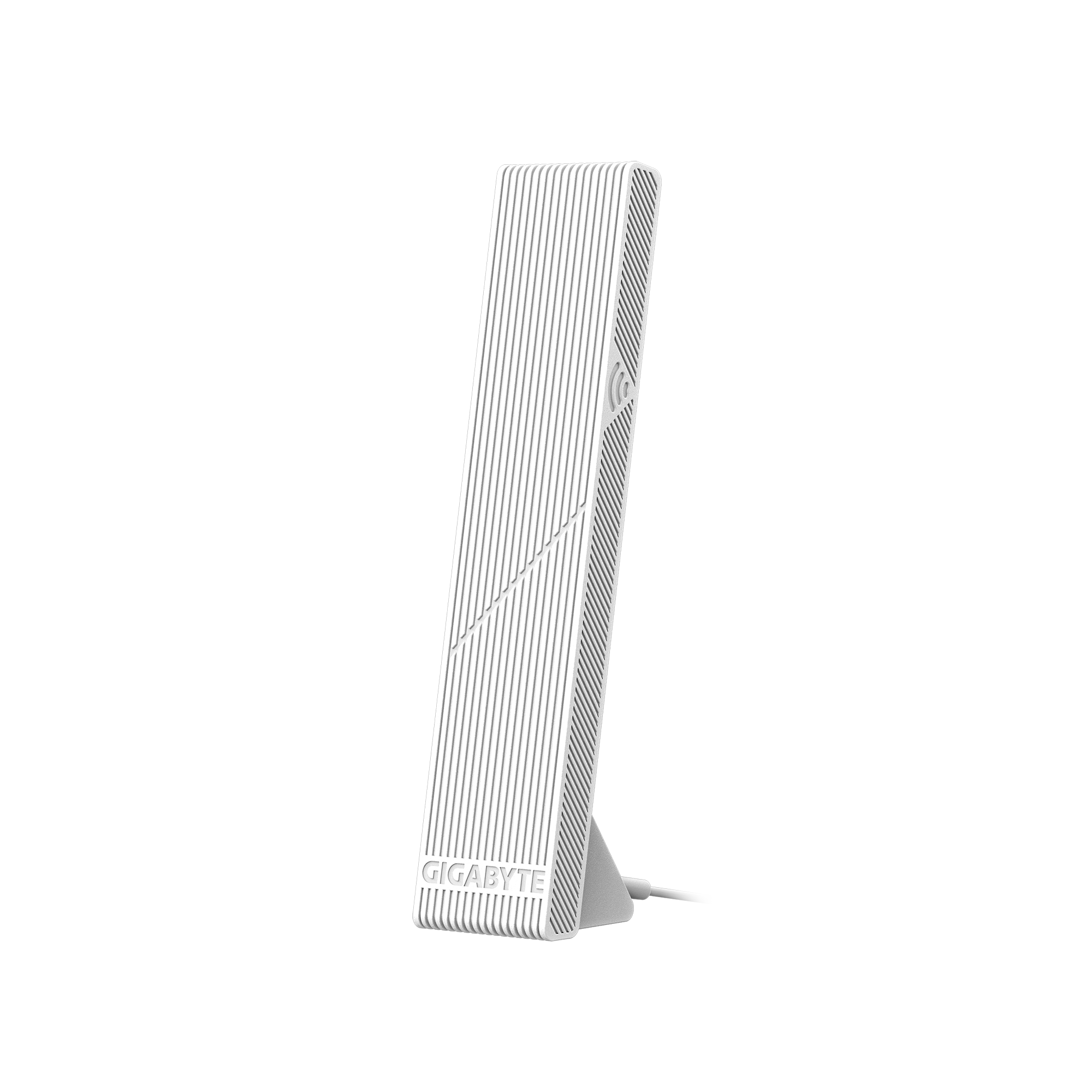

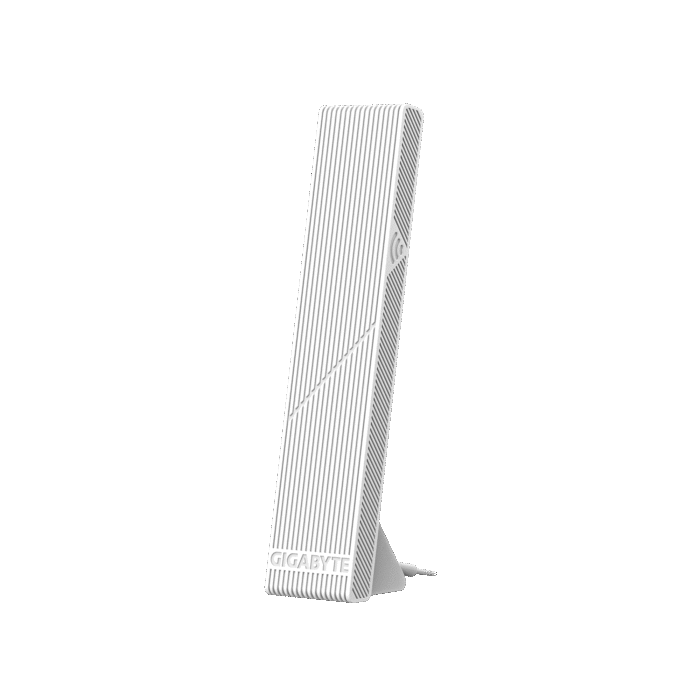

Wi‑Fi 7 (802.11be) with ultra-gain directional antenna & Bluetooth 5.4 for cutting-edge wireless speed
Wired 2.5 GbE LAN powered by a high-performance Realtek controller

DIY-Friendly & Reliability

User‑centric features like PCIe and M.2 EZ‑Latch mechanisms, Wi‑Fi EZ‑Plug, EZ‑Debug Zone LEDs, Q‑Flash Plus BIOS update, and onboard Power/Reset buttons streamline assembly and troubleshooting
Comes factory-shielded with an integrated I/O backplate and reinforced connectors.
Adheres to Ultra Durable™ standards, with environmentally conscious recyclable packaging

Audio & Aesthetics

Equipped with Realtek high-definition codec, separated audio traces, and premium capacitors to ensure clean, immersive sound.
Supports full RGB Fusion customization via 1× RGB + 3× ARGB Gen 2 headers for personalized lighting setups

Why It Stands Out

The B860 AORUS ELITE WiFi7 ICE uniquely combines top-tier I/O (USB4, PCIe 5.0, Wi‑Fi 7) and AI‑enhanced overclocking, all on a more affordable B860 chipset, making it one of the best value-heavy ATX options for LGA1851 builds. Its user-friendly design and rugged durability position it as an excellent fit for gamers, creators, and power users building next-gen PCs.

Additional information

CPU & Chipset	LGA1851 socket: Support for Intel ® Core™ Ultra Processors L3 cache varies with CPU Intel ® B860 Express Chipset
Memory	Support for DDR5 9200(O.C)/8800(O.C) /8600(O.C) / 8400(O.C) /8266(O.C) / 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) /6400/5600 MT/s memory modules 4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity)of system memory Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules
Onboard Graphics	Integrated Graphics Processor-Intel® HD Graphics support: – 1 x USB4® USB Type-C® port, supporting USB4 and DisplayPort video outputs and a maximum resolution of 3840×2160@144 Hz * Support for DisplayPort 2.1 version. – 1 x DisplayPort, supporting a maximum resolution of 3840×2160@144 Hz * Support for DisplayPort 2.1 version. – 1 x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz * Support for HDMI 2.1 version and HDCP 2.3. – 1 x front HDMI port, supporting a maximum resolution of 1920×1080@30 Hz * Support for HDMI 1.4 version(Graphics specifications may vary depending on CPU support.) Support for up to quad-display at the same time
Audio	Realtek® Audio CODEC High Definition Audio 2/4/5.1/7.1-channel Support for S/PDIF Out
LAN	Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Wireless Communication	Realtek® Wi-Fi 7 RTL8922AE (PCB rev. 1.0) – 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands – BLUETOOTH 5.4 – Support for 11be 160MHz wireless standard MediaTek Wi-Fi 7 MT7925 (PCB rev. 1.1) – 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands – BLUETOOTH 5.4 – Support for 11be 160MHz wireless standard
Expansion Slots	CPU: – 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16) Chipset: – 2 x PCI Express x16 slots, supporting PCIe 4.0 and running at x1(PCIEX1_1, PCIEX1_2)
Storage Interface	CPU: – 1 x M.2 connector (Socket 3, M key, type 25110/22110/2580/2280 PCIe 5.0×4/x2 SSD support) (M2A_CPU) Chipset: – 2 x M.2 connectors (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2Q_SB, M2N_SB) – 4 x SATA 6Gb/s connectors RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
USB	CPU: – 1 x USB4® USB Type-C® port on the back panel Chipset: – 1 x USB Type-C® port with USB 3.2 Gen 2 support, available through the internal USB header – 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel – 2 x USB 3.2 Gen 1 ports available through the internal USB header Chipset+USB 3.2 Gen 1 Hub: – 4 x USB 3.2 Gen 1 ports on the back panel Chipset+2 USB 2.0 Hubs: – 8 x USB 2.0/1.1 ports
Internal I/O Connectors	1 x 24-pin ATX main power connector 2 x 8-pin ATX 12V power connectors 1 x CPU fan header 1 x CPU fan/water cooling pump header 3 x system fan headers 1 x system fan/water cooling pump header 3 x addressable RGB Gen2 LED strip headers 1 x RGB LED strip header 3 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C® header, with USB 3.2 Gen 2 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI V2 module only) 1 x HDMI port (Note) 1 x power button 1 x reset button 1 x Q-Flash Plus button 1 x reset jumper 1 x Clear CMOS jumper

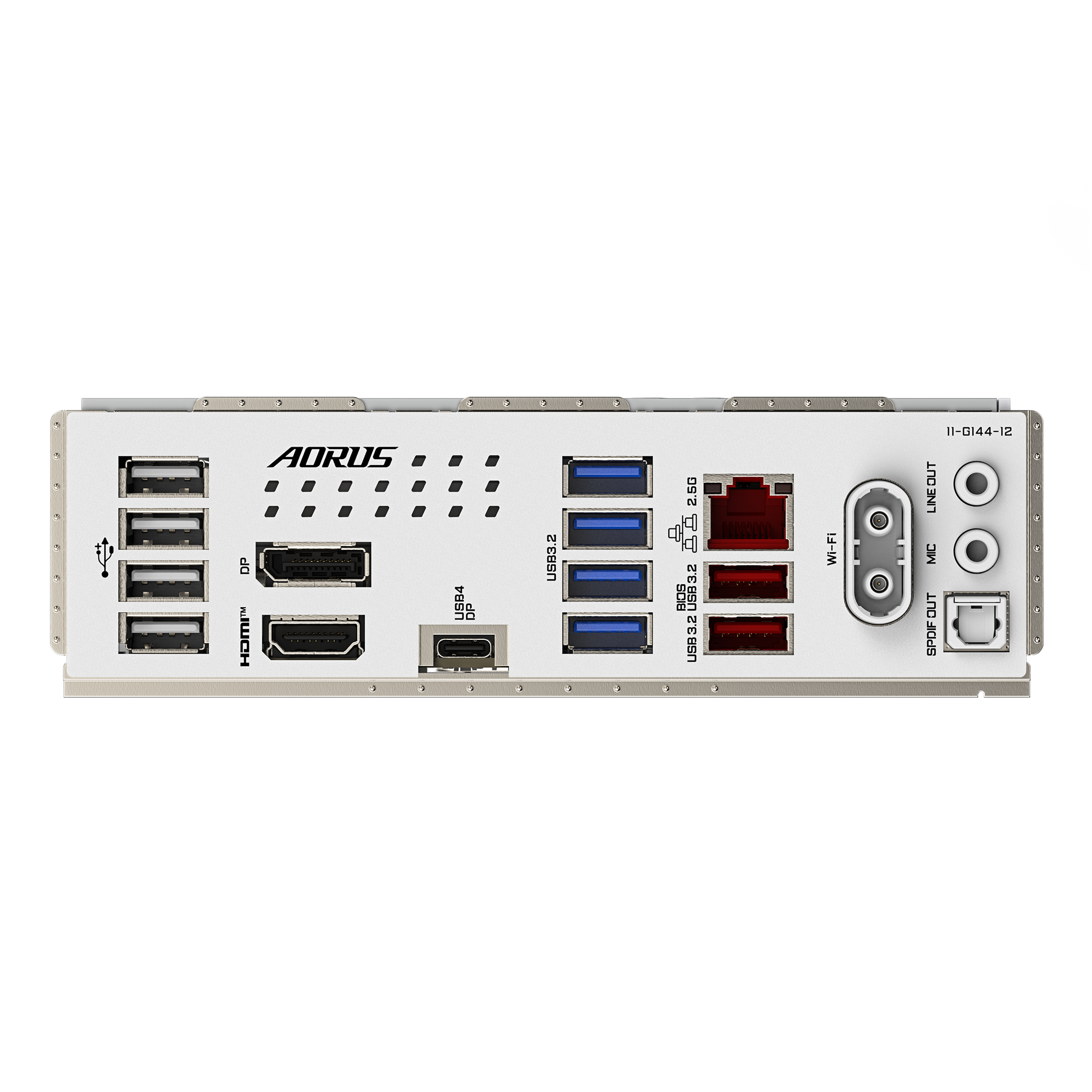

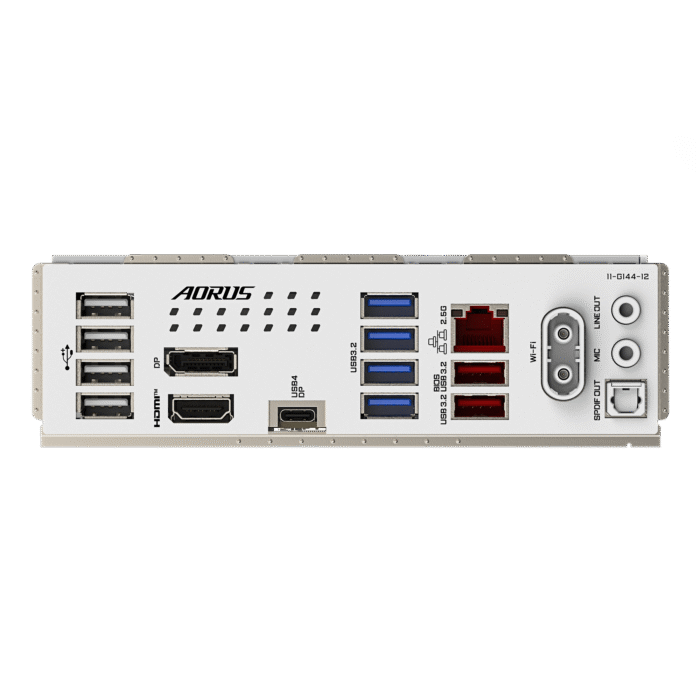

Back Panel Connectors	1 x USB4® USB Type-C® port (DisplayPort (Note)) 2 x USB 3.2 Gen 2 Type-A ports (red) 4 x USB 3.2 Gen 1 ports 4 x USB 2.0/1.1 ports 1 x DisplayPort (Note) 1 x HDMI port (Note) 2 x antenna connectors (2T2R) 1 x RJ-45 port 1 x optical S/PDIF Out connector 2 x audio jacks
I/O Controller	iTE® I/O Controller Chip
H/W Monitoring	Voltage detection Temperature detection Fan speed detection Water cooling flow rate detection Fan fail warning Fan speed control
BIOS	1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features	Support for GIGABYTE Control Center (GCC) Support for Q-Flash Support for Q-Flash Plus Support for Smart Backup
Form Factor	ATX Form Factor; 30.5cm x 24.4cm
Manufacturing Warranty	3 Years
