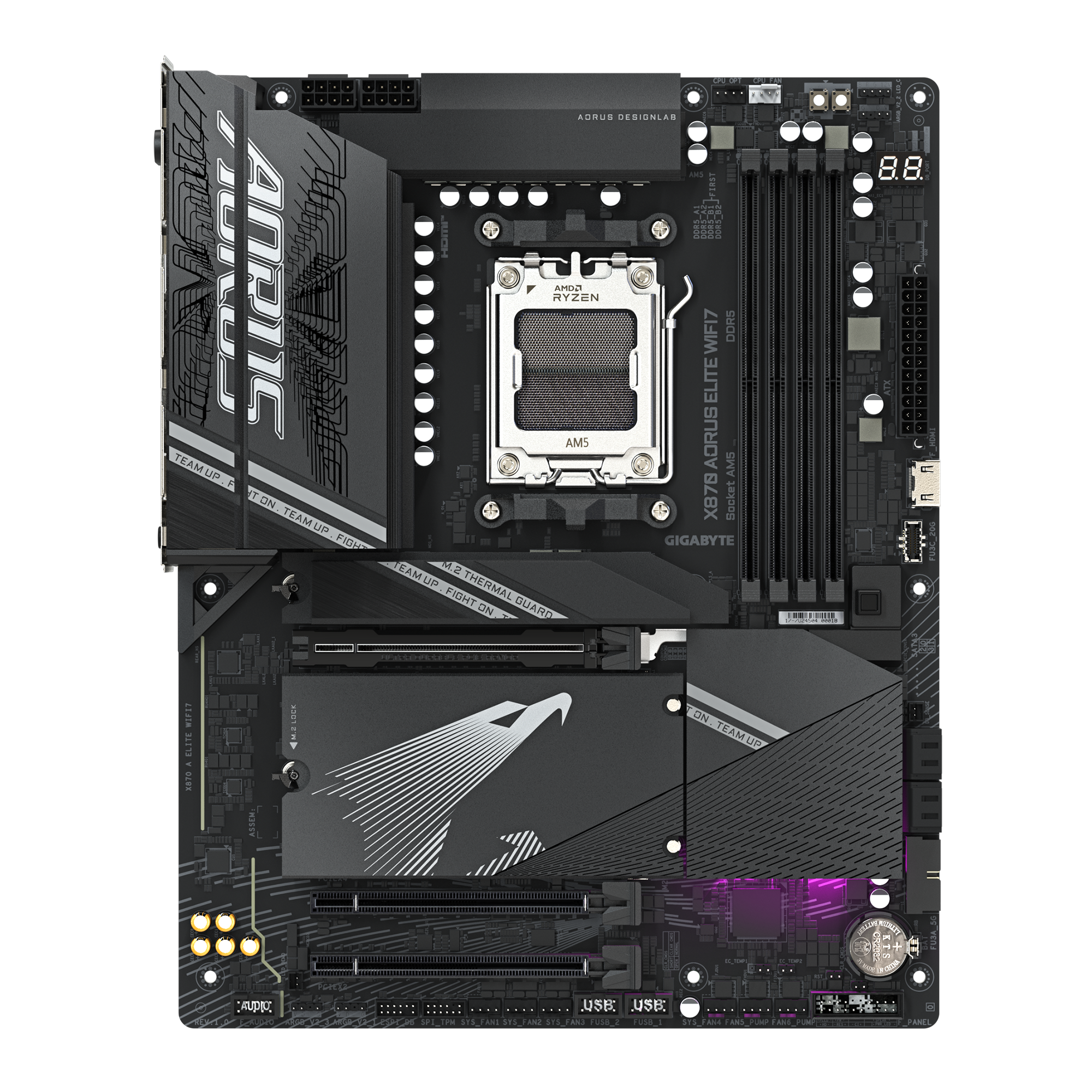

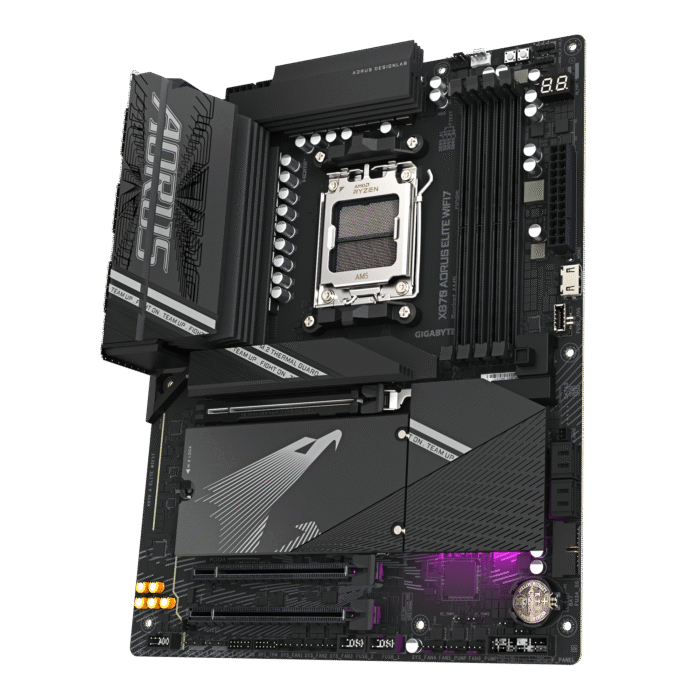

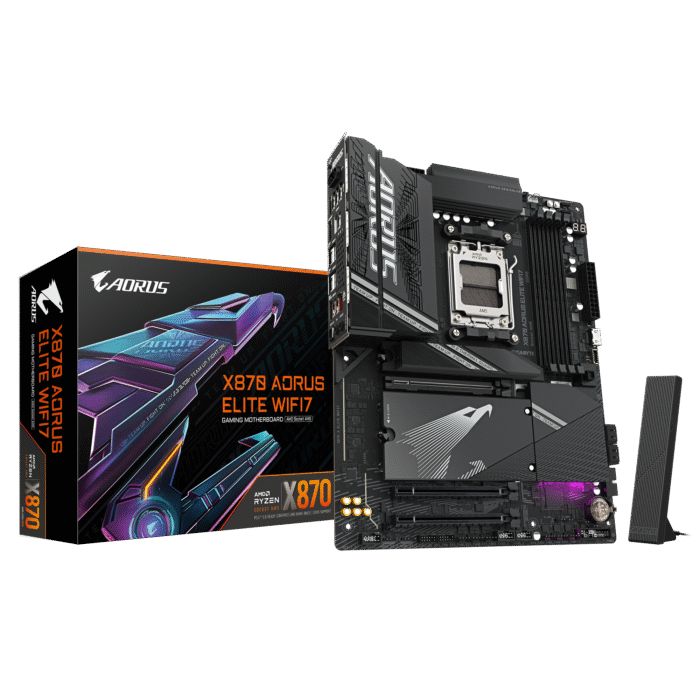

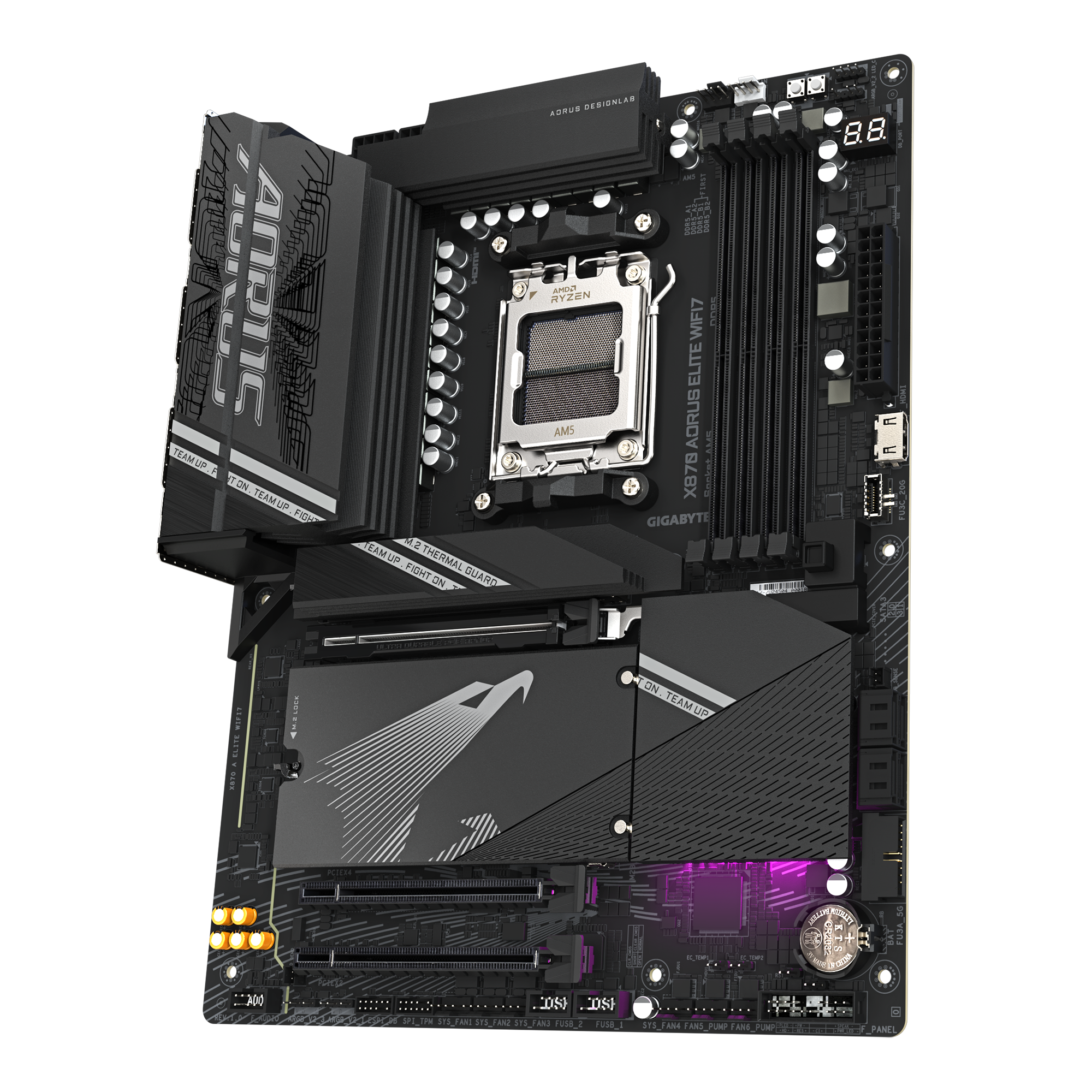

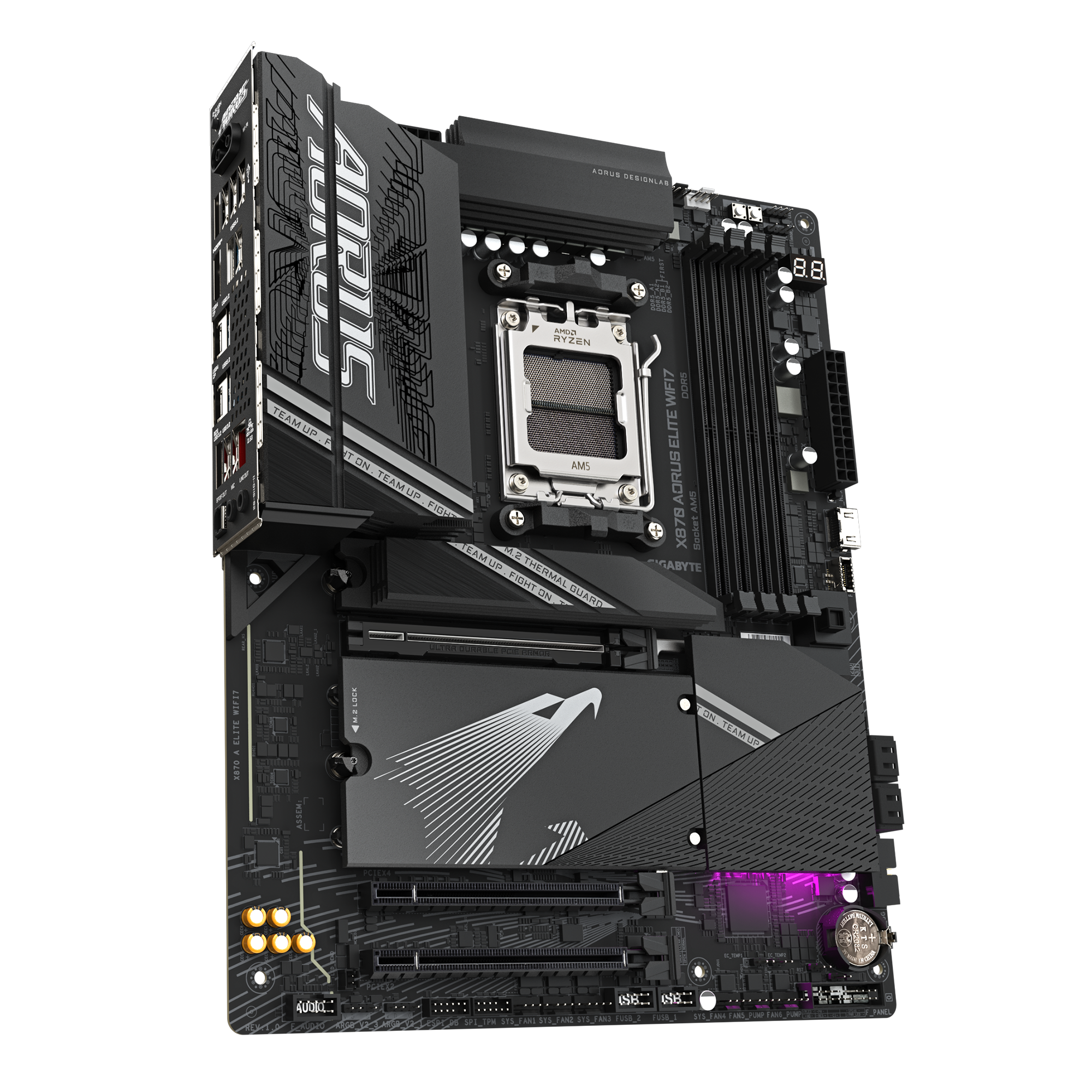

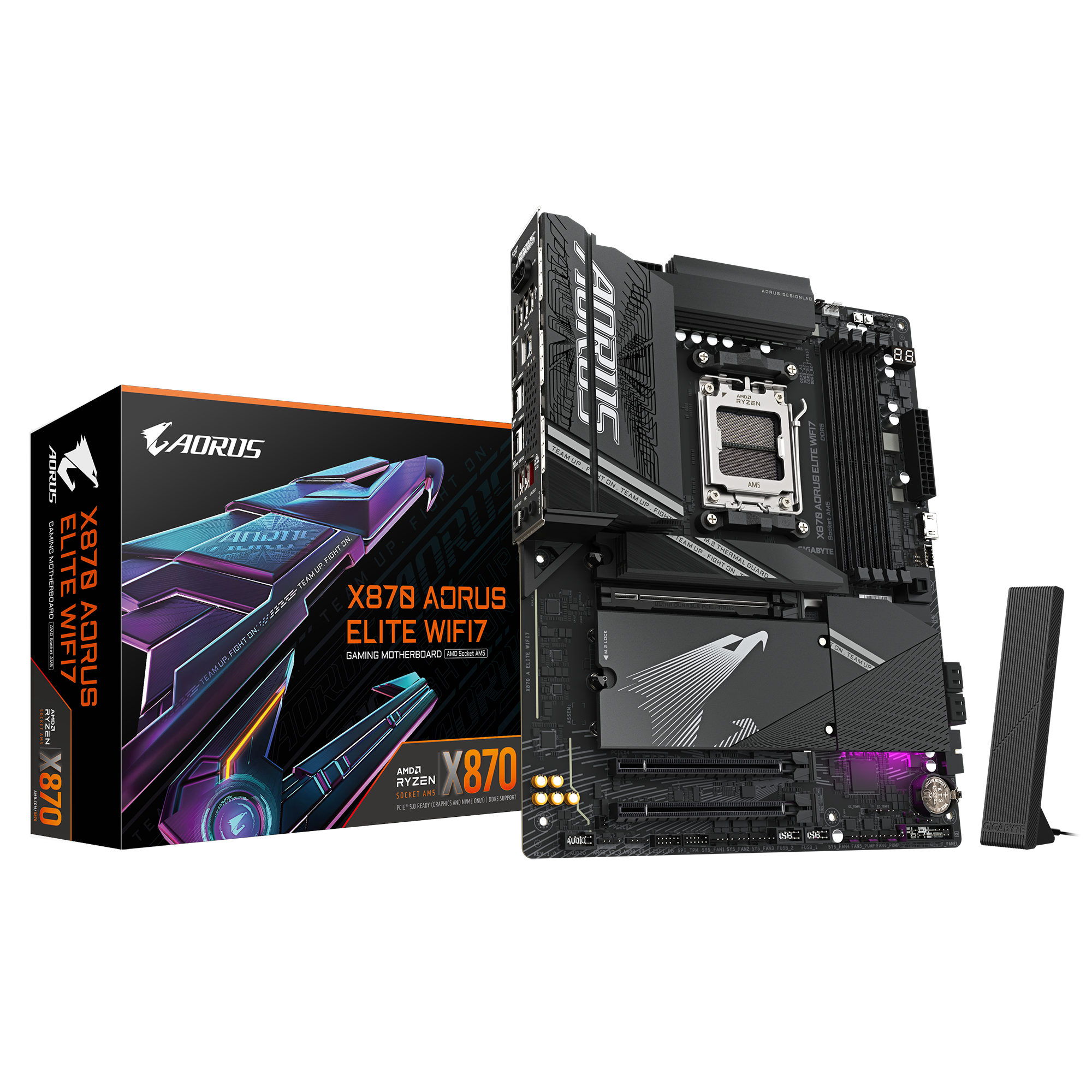

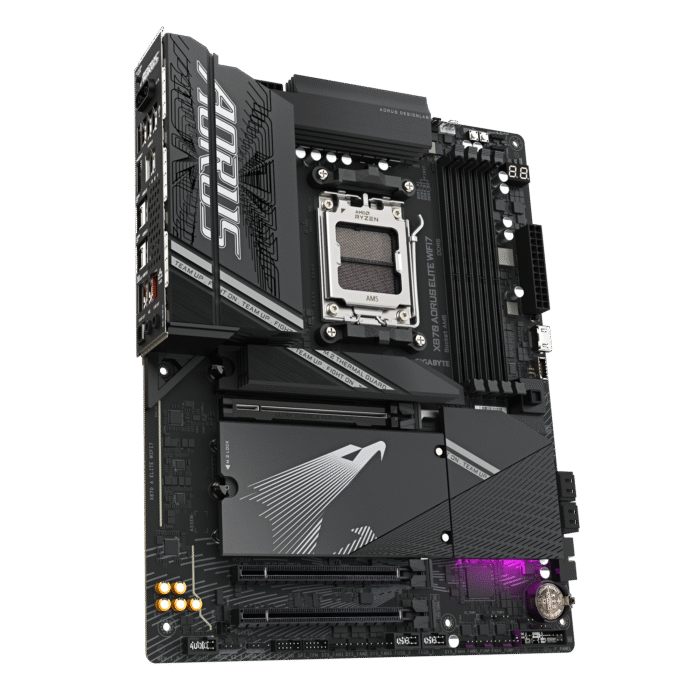

GIGABYTE X870 AORUS ELITE WIFI7 DDR5 ATX Motherboard

46,000.00৳

Key Features

Model: X870 AORUS ELITE WIFI7
Supported CPU: Ryzen 9000/ 8000/ 7000 Series Processors
Sockets Supported: AM5
Supported RAM: 4x DDR5, Max 256GB
Graphics Output: 2 x USB4 (Type-C), 1 x HDMI
Features: Realtek 2.5GbE LAN, MediaTek Wi-Fi 7 MT7925
Warranty: 3 Years

Add to compare

Add to wishlist

Category: Motherboard

Description

The GIGABYTE X870 AORUS ELITE WIFI7 is a high-performance motherboard designed for gamers, creators, and PC enthusiasts seeking cutting-edge technology and reliability. Built on the AMD X870 chipset and featuring the AM5 socket, this motherboard supports the latest AMD Ryzen™ 9000, 8000, and 7000 Series processors, offering exceptional performance for demanding applications and multitasking.

🔧 Advanced Power Design

Equipped with a digital twin 16+2+2 phases VRM solution, the X870 AORUS ELITE WIFI7 ensures stable power delivery to the CPU and memory, facilitating robust overclocking capabilities. The motherboard features a 6-layer PCB with mid-loss PCB and 2X copper PCB design, enhancing signal integrity and thermal performance. Premium chokes and capacitors further contribute to the board’s durability and efficiency.

⚡ Memory and Storage Excellence

Memory Support: The motherboard supports dual-channel DDR5 memory with 4 DIMM slots, accommodating up to 256GB of system memory (64GB per DIMM). It is compatible with AMD EXPO™ memory modules, allowing for easy memory overclocking.
Storage Options: Featuring four M.2 slots (three PCIe 5.0 x4 and one PCIe 4.0 x4) and four SATA 6Gb/s connectors, the motherboard offers extensive storage options. RAID 0, RAID 1, RAID 5, and RAID 10 configurations are supported, with RAID 5 available on AMD Ryzen™ 9000 Series processors.

🌐 Connectivity and Networking

Networking: The motherboard is equipped with a 2.5GbE LAN port and Wi-Fi 7 support, ensuring high-speed internet connectivity for online gaming and content streaming. The included directional ultra-high gain antenna enhances Wi-Fi signal reception.
USB Ports: It offers dual USB4 Type-C ports with DisplayPort Alternate Mode, providing data transfer speeds of up to 40Gb/s. Additionally, there are multiple USB 3.2 Gen 1 and Gen 2 ports, including front USB-C 20Gb/s, ensuring versatile connectivity options.
Video Output: An HDMI port is available for integrated graphics support, ideal for troubleshooting or secondary display setups.

❄️ Thermal Management

The X870 AORUS ELITE WIFI7 incorporates advanced thermal solutions to maintain optimal operating temperatures. The VRM Thermal Armor Advanced features an ultimate heatpipe and 7 W/mk thermal pad, effectively dissipating heat. M.2 Thermal Guards (L and Ext.) protect SSDs from thermal throttling, ensuring consistent performance. The motherboard also includes Smart Fan 6 technology with six PWM/DC fan headers and dual fan curve modes for customized cooling.

🔌 DIY-Friendly Features

EZ-Latch Plus: Allows for quick release and screwless design of PCIe and M.2 slots, simplifying hardware installation.
EZ-Latch Click: Enables tool-free removal of M.2 heatsinks, facilitating easy upgrades.
WIFI EZ-Plug: Streamlines the installation of Wi-Fi antennas, reducing cable clutter.
Sensor Panel Link: Provides an onboard video port for hassle-free in-chassis panel setup.
Q-FLASH Plus: Allows for BIOS updates without the need for a CPU or memory installed.

🎵 Audio Excellence

The motherboard features Realtek ALC1220 HD Audio with audiophile-grade capacitors, delivering high-quality sound for immersive gaming and media experiences.

🛡️ Durability and Build Quality

GIGABYTE’s Ultra Durable™ design ensures longevity and reliability. The PCIe x16 slot is reinforced with a metal backplate to prevent GPU sag and enhance durability. The PCIe UD Slot X provides 10X strength for graphics cards, supporting heavy-duty GPUs. The GIGABYTE X870 AORUS ELITE WIFI7 DDR5 AMD AM5 ATX Motherboard is a top-tier choice for users seeking high performance, advanced features, and robust build quality. Whether you’re building a gaming rig, a content creation workstation, or a high-performance PC, this motherboard offers the reliability and capabilities needed to meet your demands.

Why Choose GIGABYTE X870 AORUS ELITE WIFI7?

This motherboard supports the latest AMD Ryzen CPUs with a strong 16+2+2 power design for stable performance and overclocking. It offers fast DDR5 memory with AMD EXPO, multiple PCIe 5.0 M.2 slots for ultra-fast storage, and advanced cooling solutions to keep your system cool. With Wi-Fi 7, 2.5GbE LAN, and USB4 Type-C ports, it delivers top-notch connectivity. User-friendly features like tool-free installation and BIOS updates simplify building and upgrading. Reinforced slots and quality components ensure durability, making it ideal for gamers, creators, and power users.

Additional information

CPU	AMD Socket AM5, support for: AMD Ryzen™ 9000 Series Processors/ AMD Ryzen™ 8000 Series Processors/ AMD Ryzen™ 7000 Series Processors
Chipset	AMD X870
Memory	Support for DDR5 8200(OC) / 8000(OC) / 7800(OC) / 7600(OC) / 7200(OC) / 7000(OC) / 6800(OC) / 6666(OC) / 6600(OC) / 6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 / 4400 MT/s memory modules 4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory Dual channel memory architecture Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules
Onboard Graphics	Integrated Graphics Processor with AMD Radeon™ Graphics support+ASMedia USB4® Controller: – 2 x USB4® USB Type-C® ports, supporting USB4 and DisplayPort video outputs and a maximum resolution of 3840×2160@240 Hz * Support for DisplayPort 1.4 version and HDR. Integrated Graphics Processor with AMD Radeon™ Graphics support: – 1 x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz * Support for HDMI 2.1 version, HDCP 2.3, and HDR. ** Support native HDMI 2.1 TMDS compatible ports. – 1 x front HDMI port, supporting a maximum resolution of 1920×1080@30 Hz * Support for HDMI 1.4 version
Audio	Realtek® ALC1220 CODEC * The back panel line out jack supports DSD audio. High Definition Audio 2/4/5.1/7.1-channel * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings. Support for S/PDIF Out
LAN	Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Wireless Communication module	MediaTek Wi-Fi 7 MT7925 (PCB rev. 1.0) – WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands – BLUETOOTH 5.4 – Support for 11be 160MHz wireless standard Realtek® Wi-Fi 7 RTL8922AE (PCB rev. 1.1) – WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands – BLUETOOTH 5.4 – Support for 11be 160MHz wireless standard
Expansion Slots	1 x PCI Express x16 slot (PCIEX16), integrated in the CPU: AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x16 mode * The M2B_CPU and M2C_CPU connectors share bandwidth with the PCIEX16 slot. When the M2B_CPU or M2C_CPU connector is populated, the PCIEX16 slot operates at up to x8 mode. AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode (The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.) Chipset: – 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4) * The PCIEX4 slot shares bandwidth with the M2D_SB connector. The PCIEX4 slot becomes unavailable when a device is installed in the M2D_SB connector. – 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x2 (PCIEX2)
Storage Interface	1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/22110/2580/2280 SSDs: AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs 2 x M.2 connectors (M2B_CPU, M2C_CPU), integrated in the CPU, supporting Socket 3, M key, type 22110/2280 SSDs: AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs * The M2B_CPU and M2C_CPU connectors become unavailable when an AMD Ryzen™ 8000 Series-Phoenix 1/Phoenix 2 processor is used. 1 x M.2 connector (M2D_SB), integrated in the Chipset, supporting Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSDs 4 x SATA 6Gb/s connectors RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices * RAID 5 is only available on AMD Ryzen™ 9000 Series Processors. RAID 0, RAID 1, and RAID 10 support for SATA storage devices
USB	CPU+ASMedia USB4® controller: – 2 x USB4® USB Type-C® ports on the back panel CPU+USB 3.2 Gen 1 Hub: – 4 x USB 3.2 Gen 1 ports on the back panel CPU+USB 2.0 Hub: – 4 x USB 2.0/1.1 ports on the back panel Chipset: – 1 x USB Type-C® port with USB 3.2 Gen 2×2 support, available through the internal USB header – 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel – 2 x USB 3.2 Gen 1 ports available through the internal USB header – 4 x USB 2.0/1.1 ports available through the internal USB headers
Internal I/O Connectors	1 x 24-pin ATX main power connector 2 x 8-pin ATX 12V power connectors 1 x CPU fan header 1 x CPU fan/water cooling pump header 4 x system fan headers 2 x system fan/water cooling pump headers 3 x addressable RGB Gen2 LED strip headers 1 x RGB LED strip header 4 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C® header, with USB 3.2 Gen 2×2 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x noise detection header 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only) 1 x HDMI port (Note) 1 x power button 1 x reset button 2 x temperature sensor headers 1 x reset jumper 1 x Clear CMOS jumper

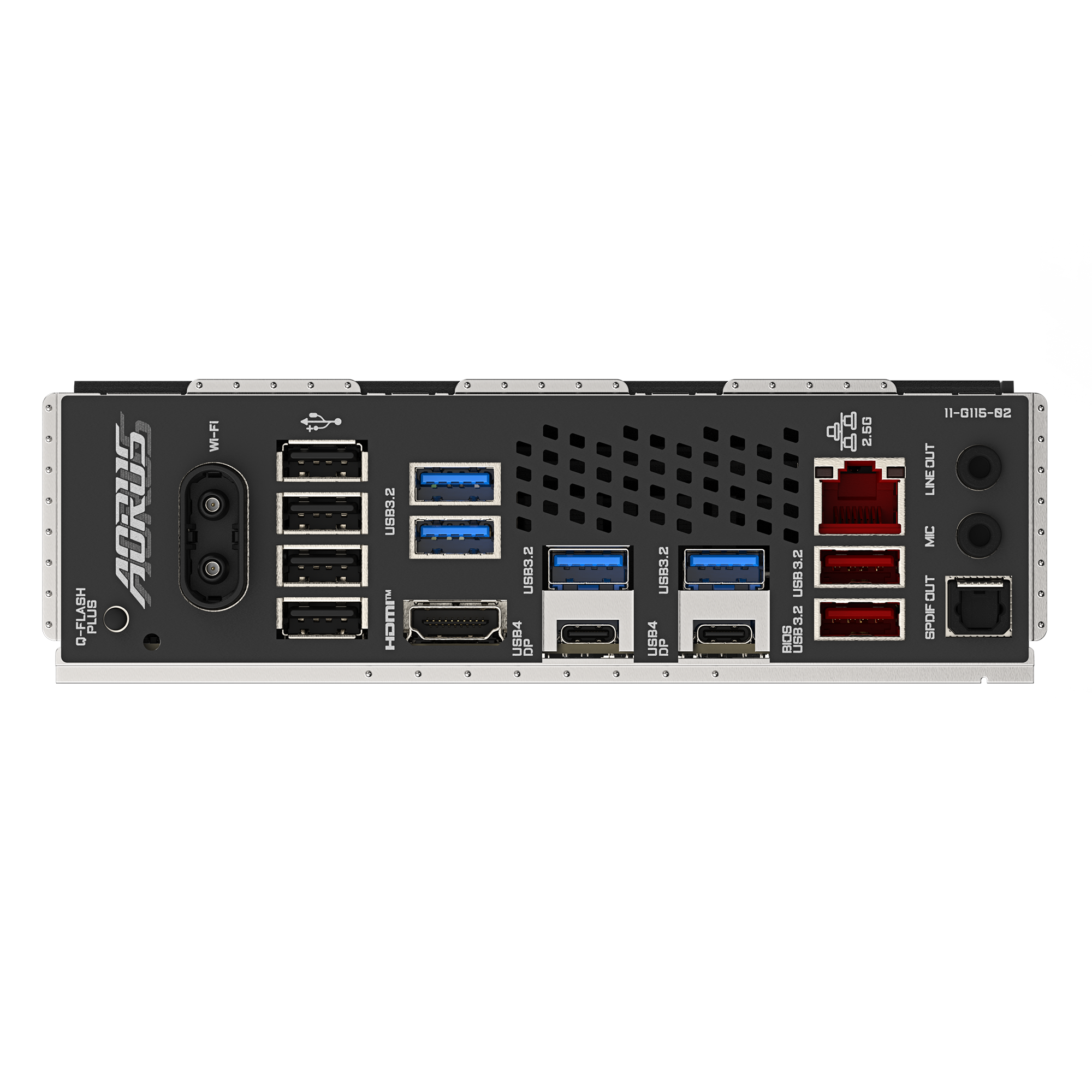

Back Panel Connectors	1 x Q-Flash Plus button 1 x HDMI port (Note) 2 x antenna connectors (2T2R) 2 x USB4® USB Type-C® ports (DisplayPort (Note)) 2 x USB 3.2 Gen 2 Type-A ports (red) 4 x USB 3.2 Gen 1 ports 4 x USB 2.0/1.1 ports 1 x RJ-45 port 1 x optical S/PDIF Out connector 2 x audio jacks
I/O Controller	iTE® I/O Controller Chip
H/W Monitoring	Voltage detection Temperature detection Fan speed detection Water cooling flow rate detection Fan fail warning Fan speed control * Whether the fan (pump) speed control function is supported will depend on the fan(pump) you install. Noise detection
BIOS	1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features	Support for GIGABYTE Control Center (GCC) * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. Support for Q-Flash Support for Q-Flash Plus Support Smart Backup
Form Factor	ATX Form Factor; 30.5cm x 24.4cm
