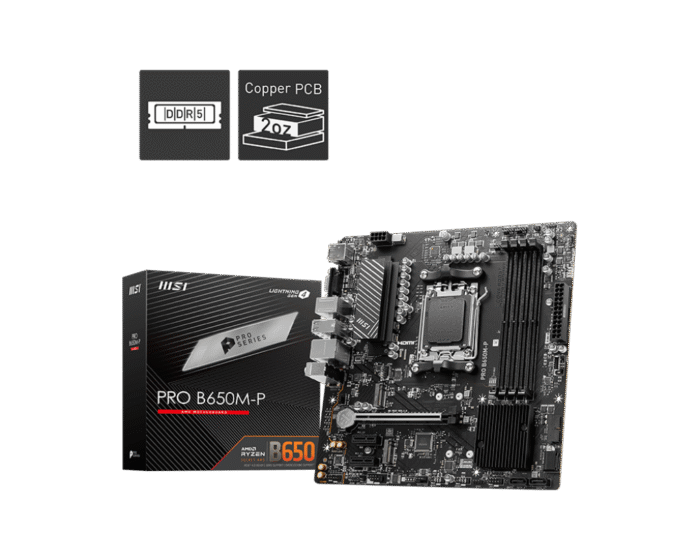

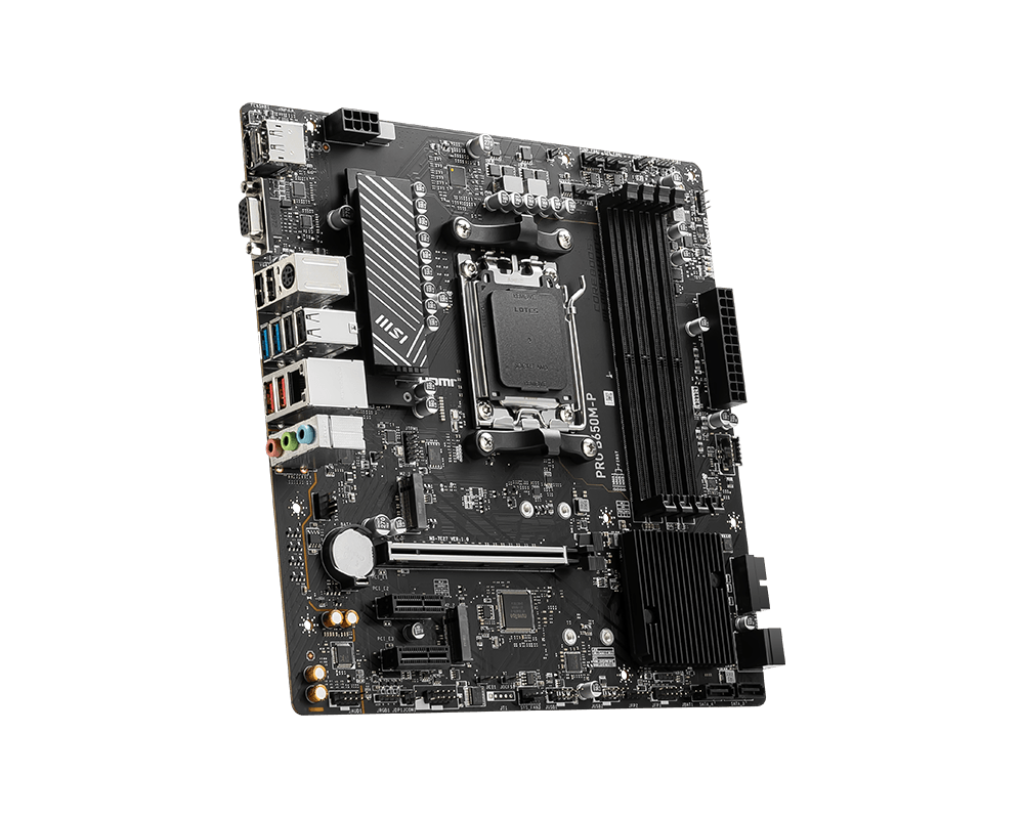

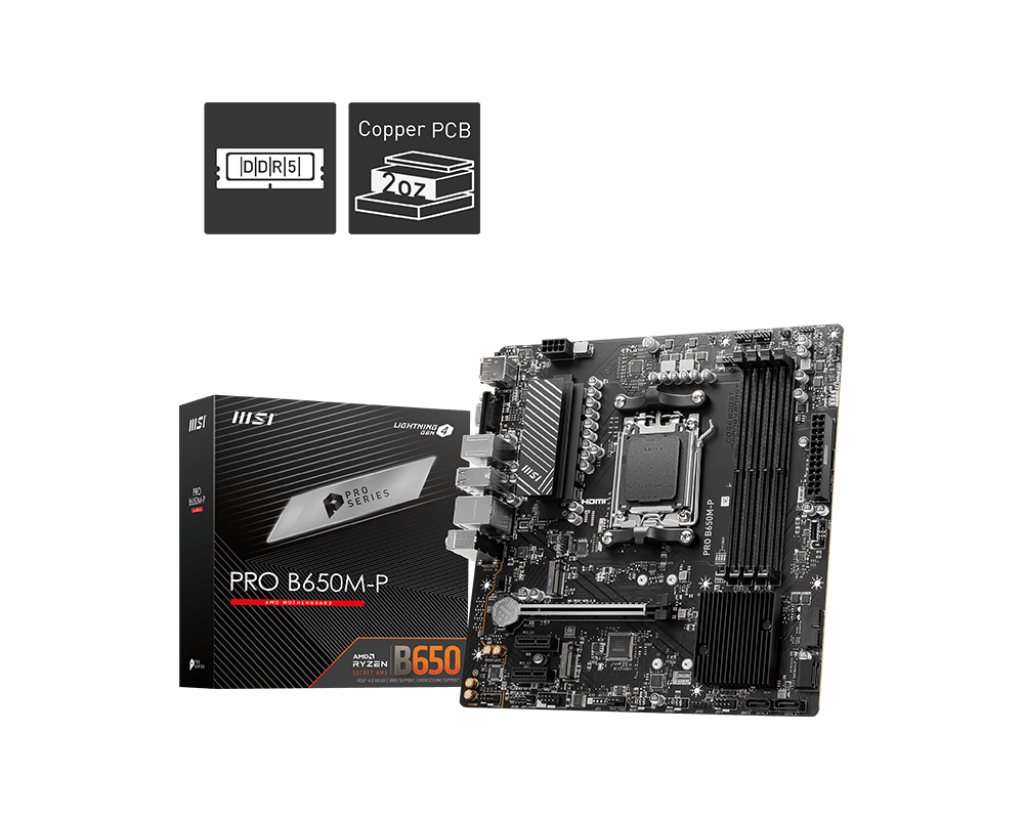

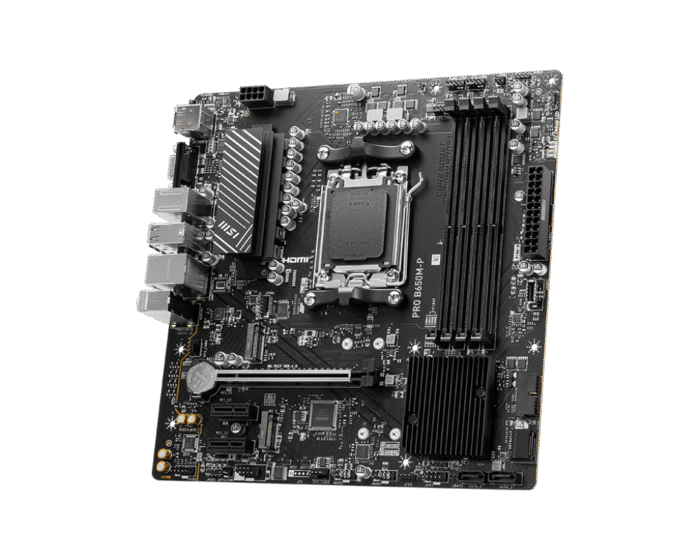

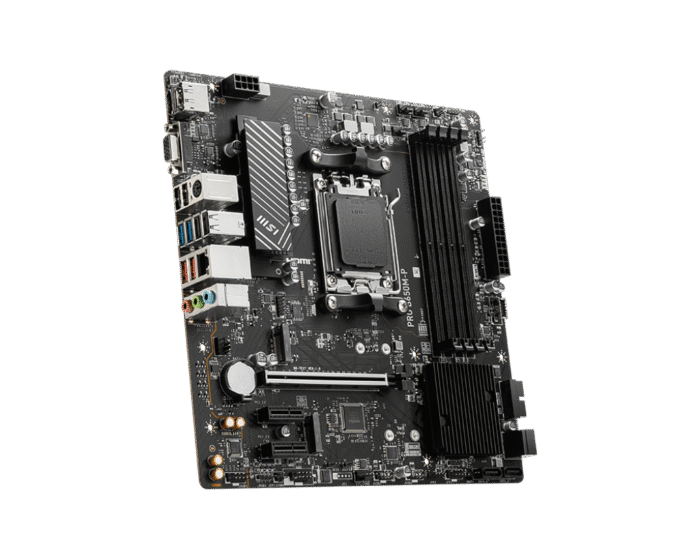

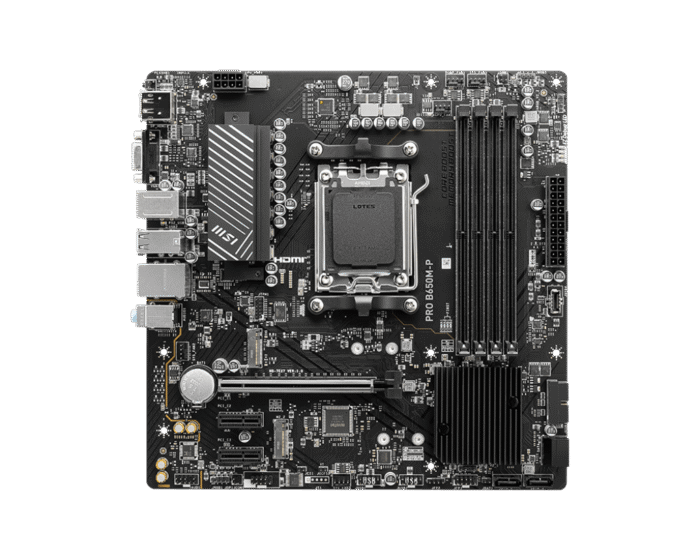

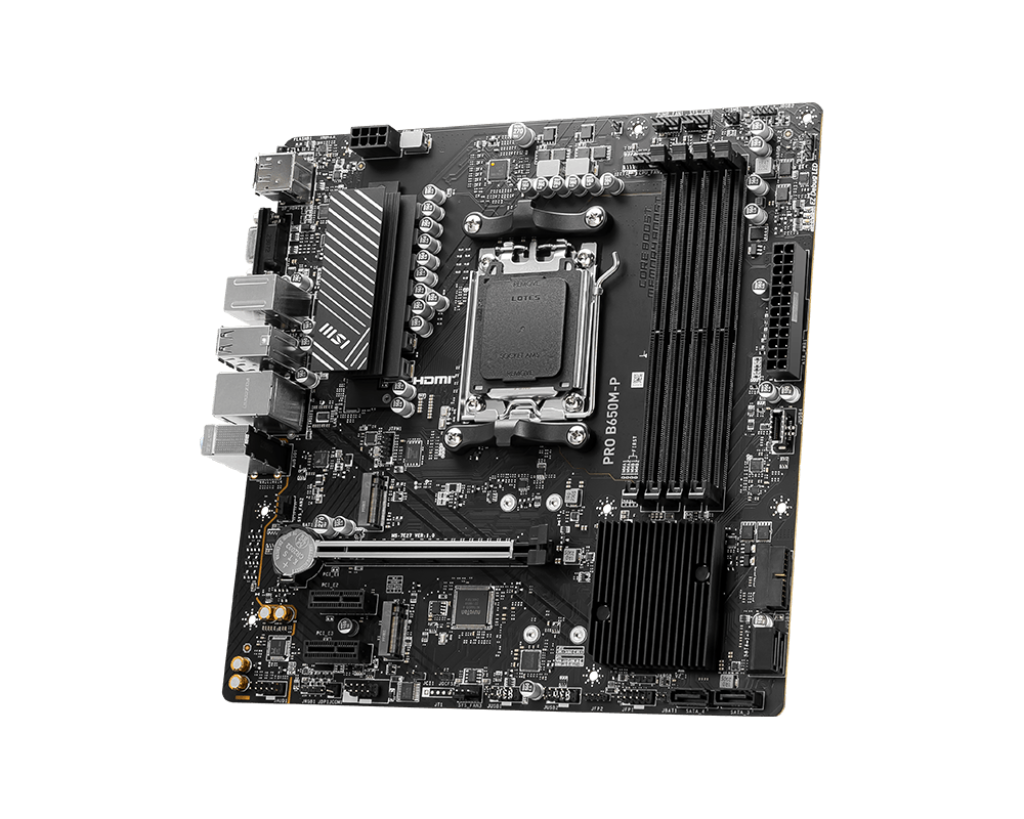

MSI PRO B650M-P AM5 Micro-Atx Motherboard

The MSI PRO B650M-P is a compact Micro-ATX motherboard designed to deliver professional-grade performance and stability, equipped with the latest AMD AM5 socket and B650 chipset. Built for creators, professionals, and system integrators, it supports AMD Ryzen 7000, 8000, and 9000 Series desktop processors and DDR5 memory, providing cutting-edge bandwidth and high-speed computing in a budget-friendly, reliable form factor.

🎯 Designed for Productivity & Core Performance

• AM5 socket, AMD B650 chipset – fully compatible with Ryzen 7000, 8000, and 9000 Series desktop processors, offering outstanding performance for both creative work and business applications.

• Digital power design with Core Boost – premium VRM layout optimized for high-core-count CPUs, ensuring stable power delivery and peak performance during multitasking or heavy workloads.

🔧 Robust Memory & Storage Capabilities

• 4× DDR5 DIMM slots, supporting dual-channel memory up to 7200+ MHz (OC) and a maximum capacity of 192 GB—perfect for demanding multitasking and professional-grade applications.

• Memory Boost & EXPO/XMP auto-profiles – MSI’s SMT-enhanced memory trace design and Memory Boost tech ensure clean, stable high-frequency signals, with BIOS support for EXPO, XMP, and Latency Killer for up to 12% latency reduction.

• Dual PCIe 4.0 M.2 slots + 4× SATA III 6 Gbps – supports ultra-fast NVMe storage and traditional drives, including RAID 0/1/10 configurations for flexible storage setups .

🛠️ Solid Expansion & Graphics Support

• PCIe 4.0 x16 slot with Steel Armor reinforcement – supports current-gen GPUs with reduced EMI and added durability.

• Two PCIe 3.0 x1 slots – ideal for additional expansion cards (e.g. audio, NICs).

🌐 Professional-Level Connectivity

• 2.5 GbE LAN (Realtek RTL8125BG) – high-speed wired networking for fast data transfers or low-latency online work.

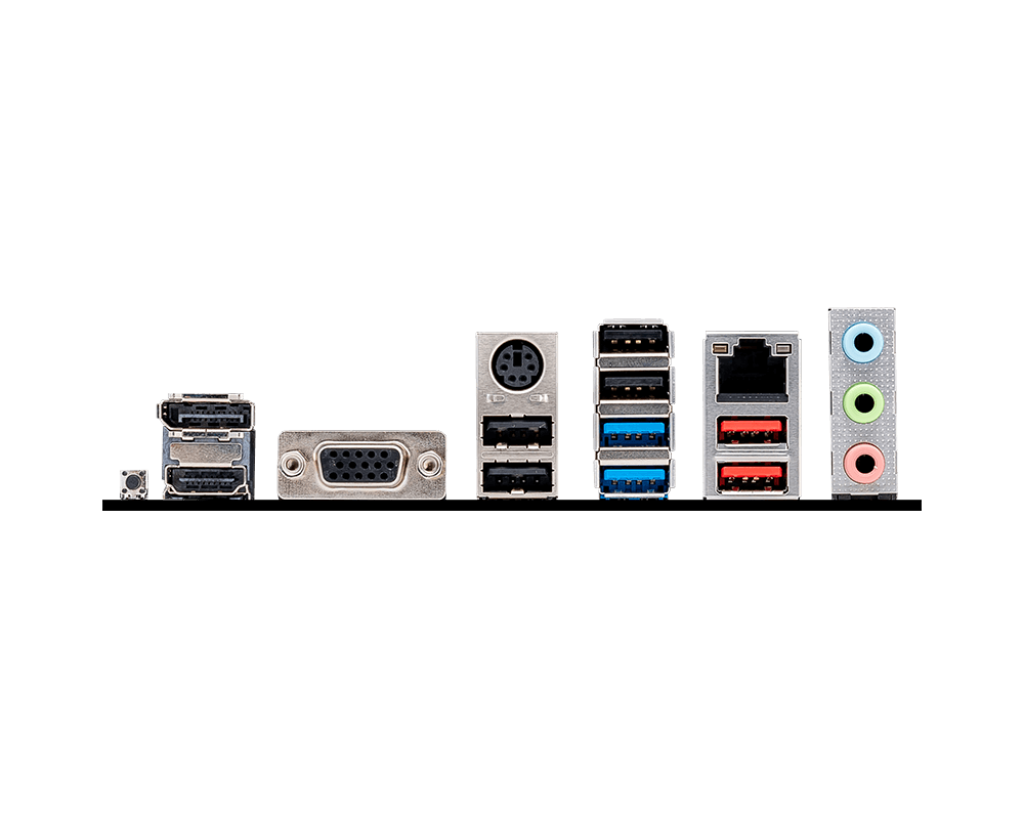

• Rear I/O ports include:

  • 2× USB 3.2 Gen 2 (10 Gbps),

  • 2× USB 3.2 Gen 1 (5 Gbps),

  • 4× USB 2.0,

  • Front panel USB 3.2 Gen 2 Type-C header

• Integrated graphics outputs – HDMI 2.1, DisplayPort 1.4, and VGA support (with compatible CPU), ensuring versatile display options.

🧊 Efficient Cooling & Durability

• 6-layer PCB with 2 oz copper & Frozr AI Cooling – enhances thermal performance and adjusts fan curves dynamically based on CPU/GPU temps.

• Heatsinks & thermal pads – VRM heatsink, chipset heatsink, plus 7 W/mK MOSFET pad and choke pad for stable operation under load.

• Full fan control – headers for CPU, pump, and system fans, manageable via BIOS/MSI Center software.

🎚️ User-Friendly Features for Builders

• EZ Debug LED – instantly identifies boot or hardware issues.

• Double ESD protection & keep-out zones – improves static discharge safety and simplifies installation.

• Flash BIOS Button – conveniently update BIOS from a USB stick with no CPU installed.

🎵 Enhanced Audio

• Audio Boost with Realtek ALC897 codec – provides clear 7.1‑channel HD audio with dedicated caps and isolated circuitry for reduced interference.

💡 Aesthetic & Smart Software

• Mystic Light RGB control – manage onboard and external RGB lighting, including ARGB Gen1/Gen2 header support.

• MSI Center integration – centralized hub for system monitoring, performance tuning, fan curves, BIOS updates, lighting, and productivity tools.

  ✅ Why Choose the MSI PRO B650M-P?

  • Ideal for compact, budget-friendly AM5 builds without compromising on next-gen performance.

  • Supports DDR5, PCIe 4.0, 2.5G LAN, and multiple M.2 drives.

  • Great for business PCs, workstations, and mainstream desktops looking for AM5 platform longevity.

  • Backed by MSI’s reliability, thermal engineering, and BIOS flexibility.
