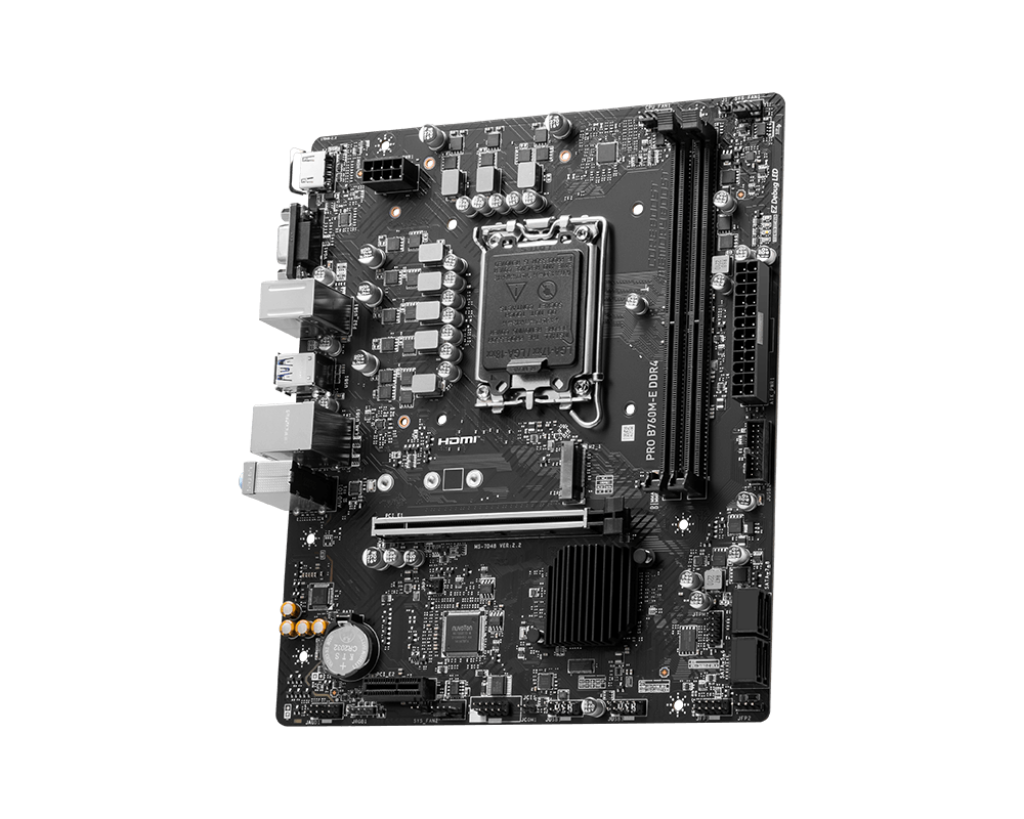

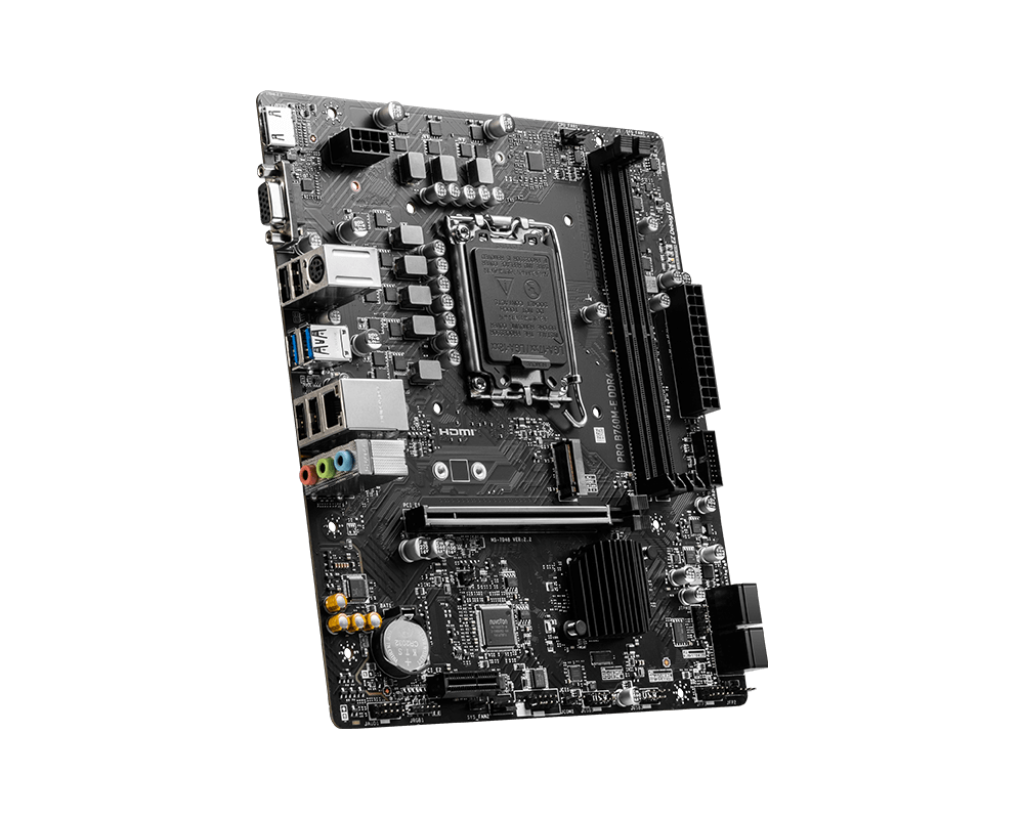

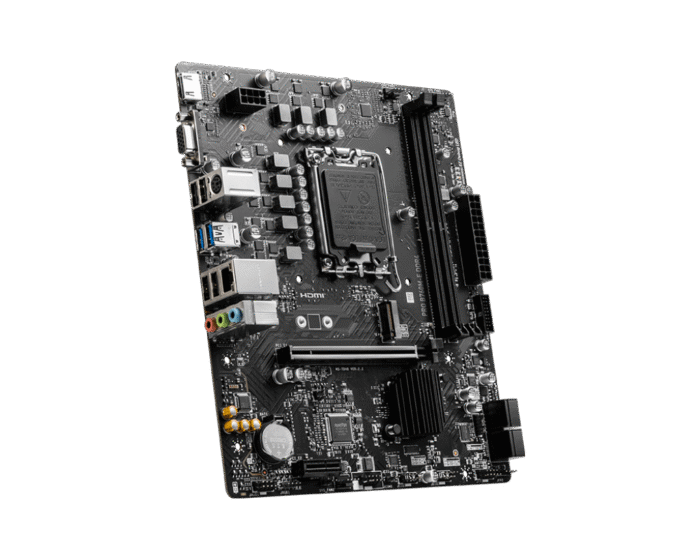

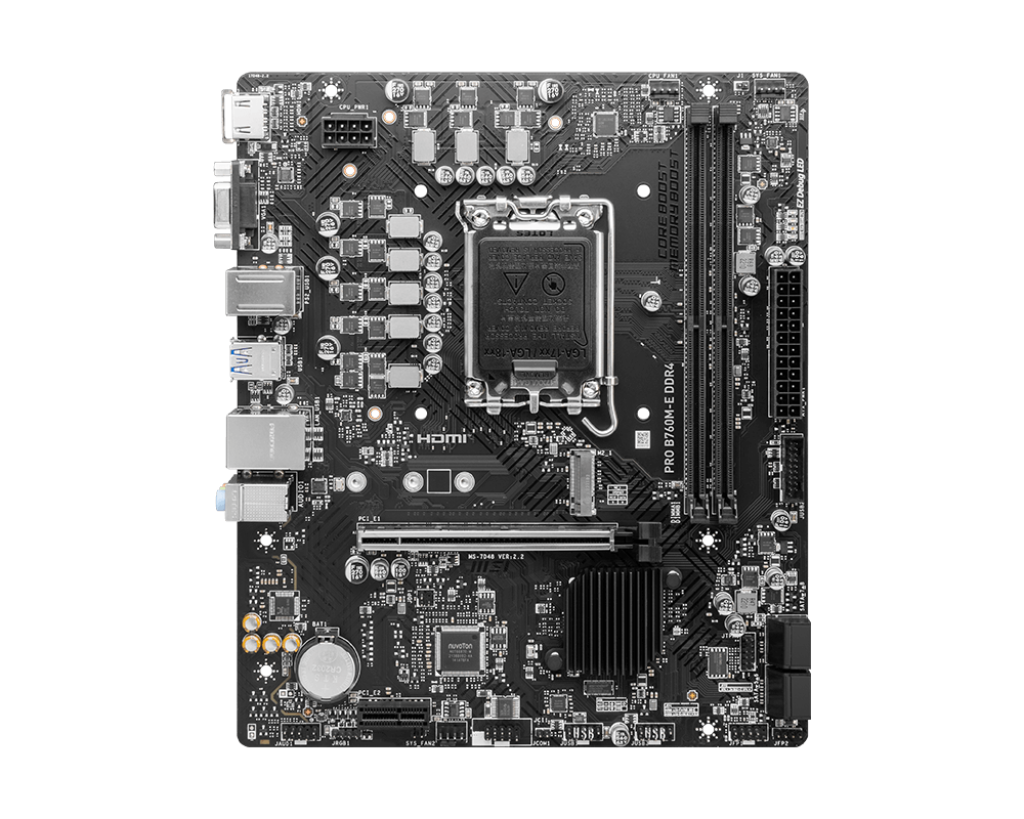

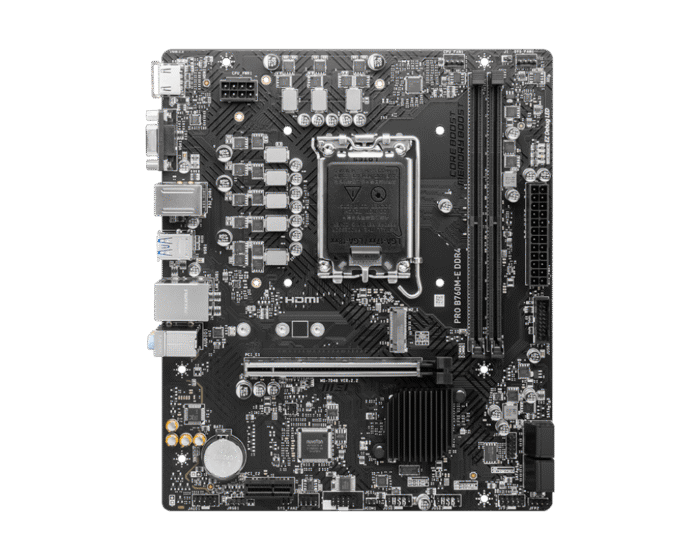

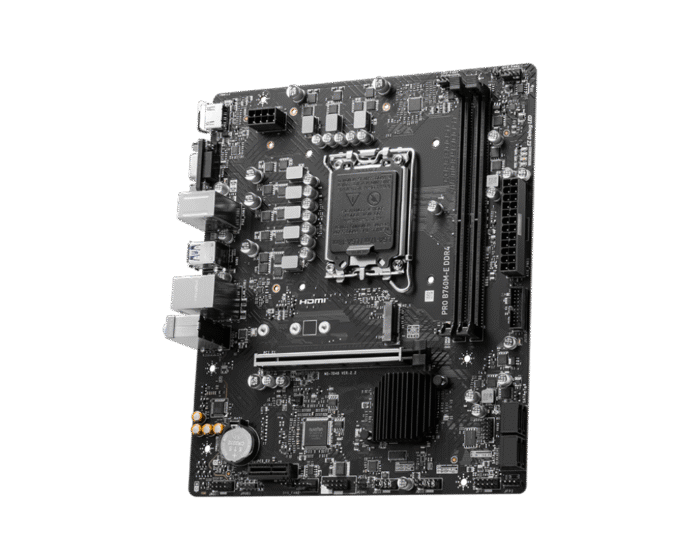

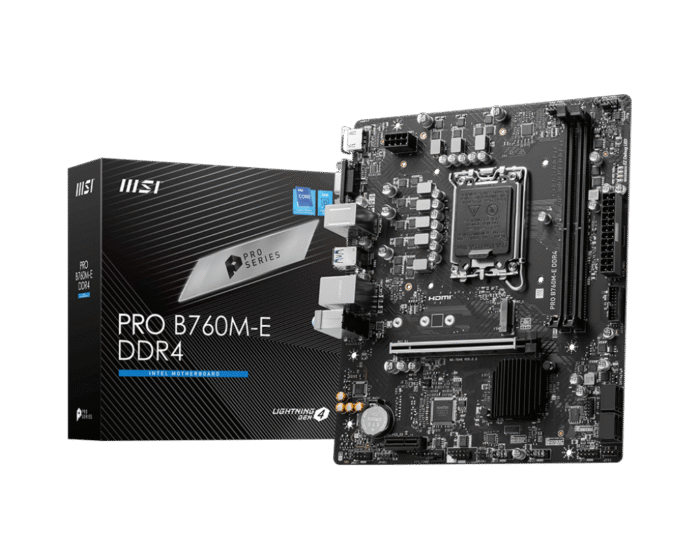

MSI PRO B760M-E DDR4 Micro-ATX Motherboard

The MSI PRO B760M-E DDR4 is a compact, reliable Micro-ATX motherboard designed for Intel 14th, 13th, and 12th Gen processors. It supports high-speed DDR4 memory up to 4800+ MHz (OC), PCIe 4.0 for modern GPUs, and fast M.2 Gen4 storage. With features like Core Boost, Audio Boost, EZ Debug LED, and MSI Center software, it offers solid performance and stability for business, productivity, and entry-level gaming builds.

Platform & CPU Support

• CPU Socket: LGA 1700, compatible with Intel 14th/13th/12th Gen Core™, Pentium® Gold, and Celeron® processors.

• Chipset: Intel® B760.

Graphics & Display Outputs

• PCIe: 1 × PCIe 4.0 x16 (from CPU) with Steel Armor, and 1 × PCIe 3.0 x1 (from chipset).

• Video Outputs: HDMI 1.4 (4K @ 30 Hz) and VGA (up to 2048×1536).

Connectivity

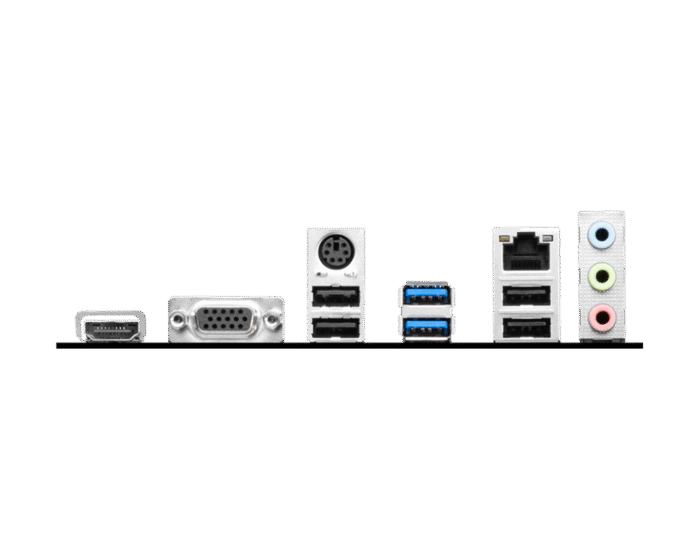

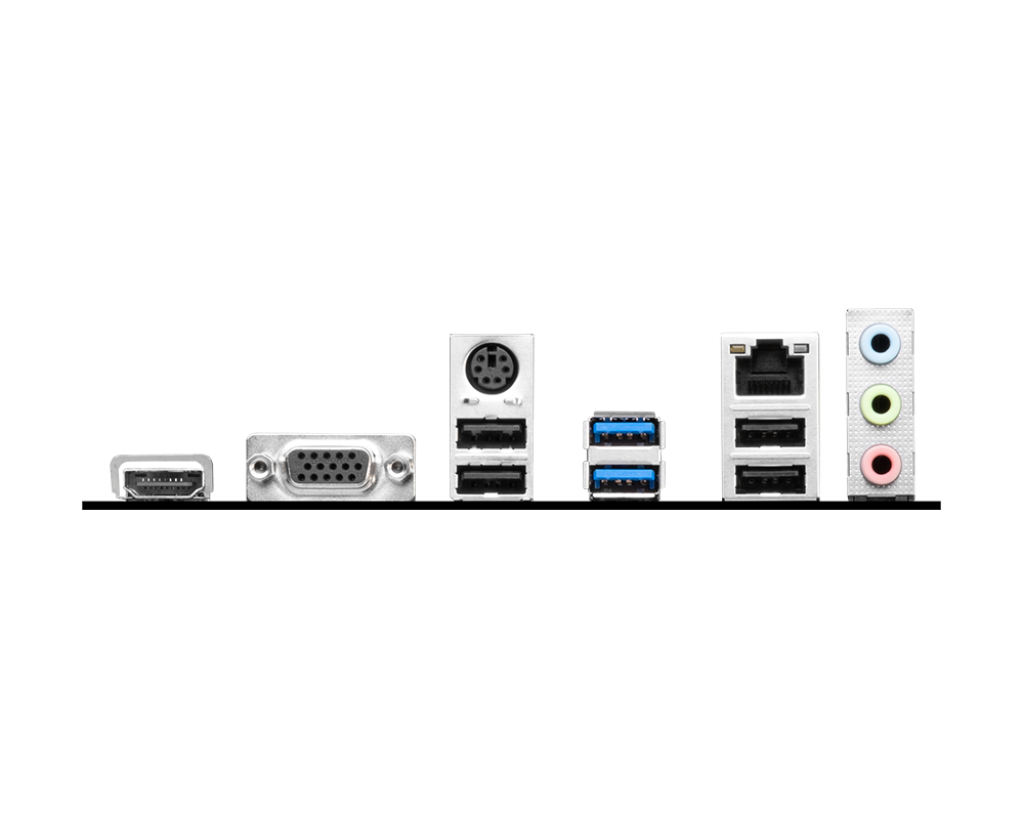

• USB (Rear): 4 × USB 3.2 Gen1 (5 Gbps), 4 × USB 2.0.

• USB (Front Headers): 2 × USB 3.2 Gen1, 4 × USB 2.0.

• LAN: Realtek® RTL8111H Gigabit Ethernet.

Audio

• Codec: Realtek® ALC897 7.1‑channel HD.

• Enhancements: Audio Boost with high-quality capacitors, isolated signal path, and de-pop protection.

Cooling & Reliability

• Frozr AI Cooling: Intelligent fan control integrates CPU/GPU temperature sensing and up to 4 configurable fan targets via BIOS/MSI Center.

• Chipset Heatsink: Helps reduce dust buildup and operational noise.

• Protection Features: Steel Armor for PCIe slot, Double ESD protection, and screw-hole protective paint.

Form Factor & Box Contents

• Form Factor: Micro‑ATX, 200 × 236.16 mm.

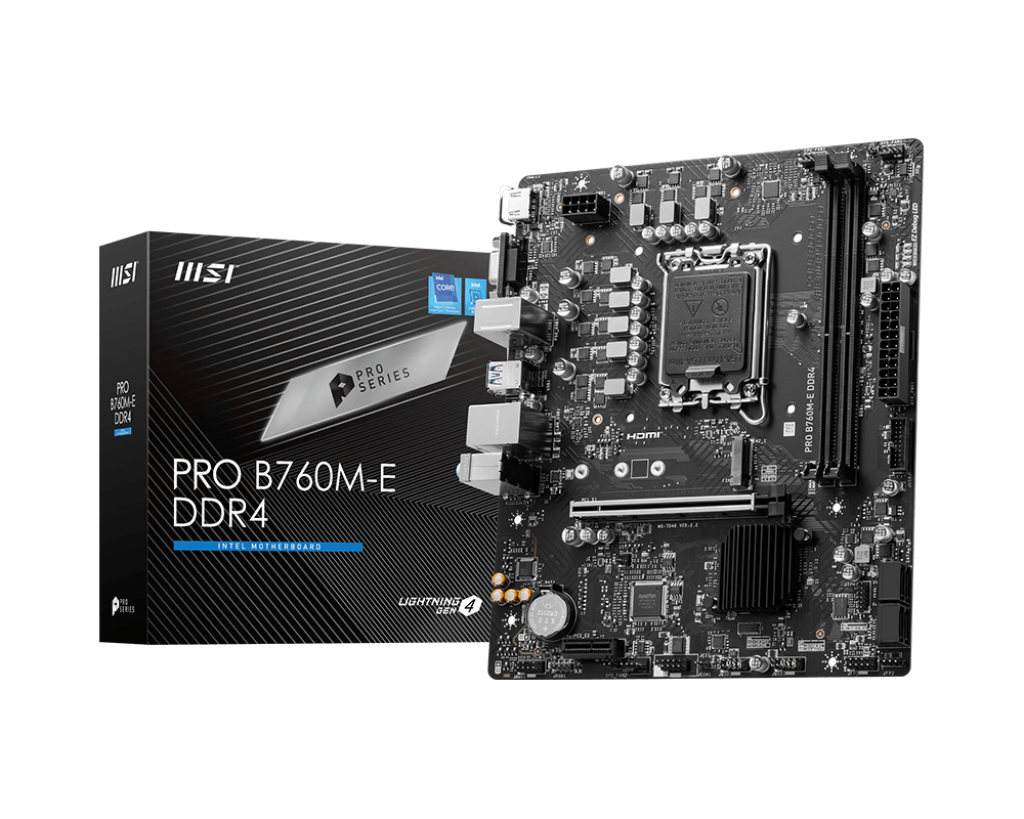

• Box Includes: MSI PRO B760M‑E DDR4 motherboard, user manual, SATA cables, M.2 screw & clip, driver utility installer—exact accessories may vary by region.

Reliable Build Quality

• 6-layer PCB with 2oz thickened copper enhances signal transmission and system heat dissipation for longer stability and durability.

• Steel Armor PCIe slot prevents graphics card sagging and EMI interference, perfect for securing your investment in heavier GPUs.

• Double ESD protection around all mounting holes and ports guards your system against electrostatic damage—especially useful in office or educational environments.

Intelligent Thermal Management

• Frozr AI Cooling auto-adjusts fan speeds based on CPU and GPU temps.

• Dedicated fan headers let you manually configure fan curves or set intelligent profiles via BIOS or MSI Center.

• Extended heatsinks for the VRMs ensure cool and stable power delivery, particularly during peak performance.

Optimized Memory Support

• DDR4 support up to 4800+ MHz (OC) gives you a cost-effective and performance-ready platform with excellent memory tuning options.

• With MSI’s Memory Boost technology and carefully optimized trace layouts, your system achieves improved stability and reduced latency—especially with dual-channel configurations.

Fast Storage & Expansion Options

• Equipped with one PCIe Gen4 x4 M.2 slot for high-speed NVMe SSDs—allowing faster OS boot and file transfers.

• Four SATA III ports support traditional storage drives with RAID options (0/1/5/10).

• Multiple PCIe slots let users install additional cards for networking, capture, or dedicated sound processing.

Utility & BIOS Features

• EZ Debug LEDs: Instant boot issue diagnostics with LEDs for CPU, DRAM, VGA, and boot devices.

• Unified MSI Center: Centralized software for BIOS updates (M‑Flash), fan control, hardware monitoring, storage backup, BIOS tweaking, and one-click XMP .

• Resizable BAR & Secure Boot: Supports advanced GPU frame buffer access and secure system startup.

• AIDA64 Extreme (60‑day trial): For system diagnostics, benchmarking, and monitoring.

Perfect for Business and Personal Use

• Ideal for educational setups, small business PCs, digital signage systems, or anyone needing a reliable, efficient, and upgradeable PC foundation.

• Offers a blend of legacy (VGA) and modern (HDMI, PCIe Gen4, M.2) interfaces—ensuring wide peripheral compatibility.

🔍 Why Choose the PRO B760M‑E DDR4?

• Compact Layout: Micro‑ATX size balances space-saving with full-featured expandability.

• Modern Performance: PCIe 4.0 GPU & storage options.

• Optimized DDR4 Support: High-speed memory compatibility with OC headroom.

• Silent & Smart Cooling: Frozr AI keeps system temperature in check automatically.

• Built for Admins & Professionals: With toolkits like MSI Center, AIDA64, and Secure Boot.

• Stable Connectivity: Multiple USB ports, dual-display support, and Gigabit LAN ensure seamless productivity.
