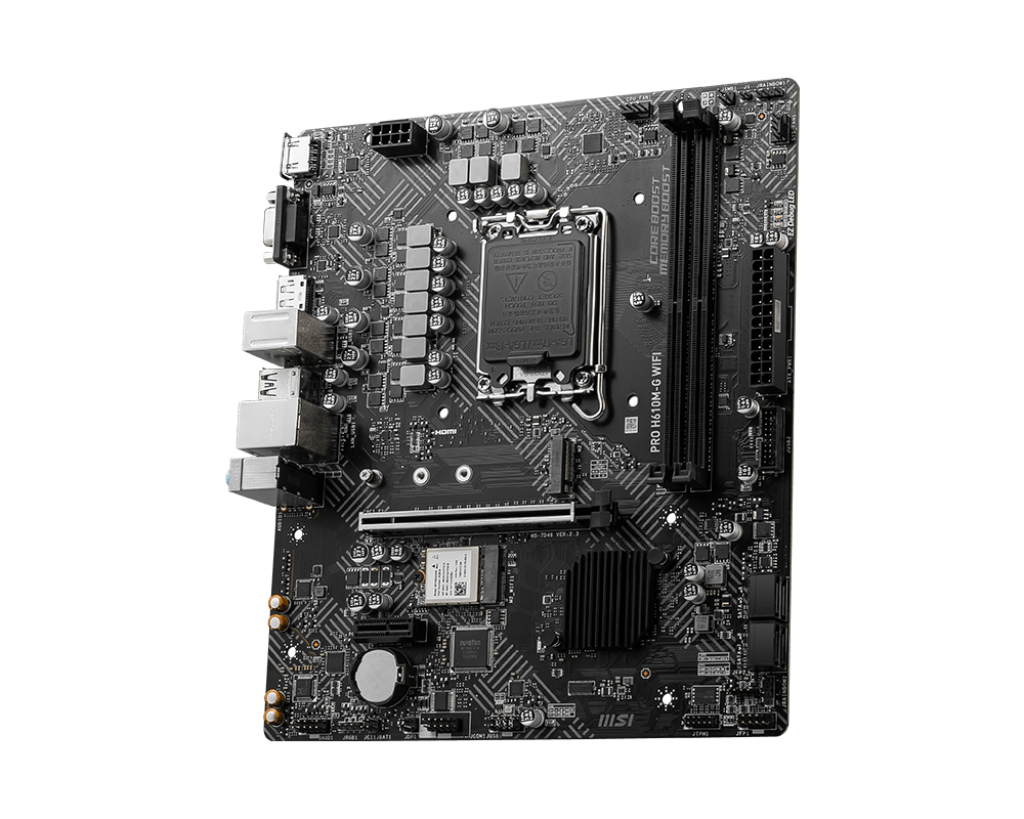

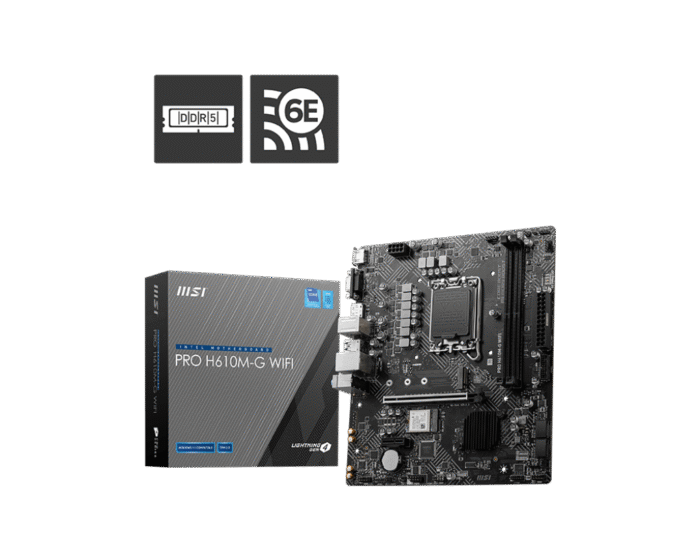

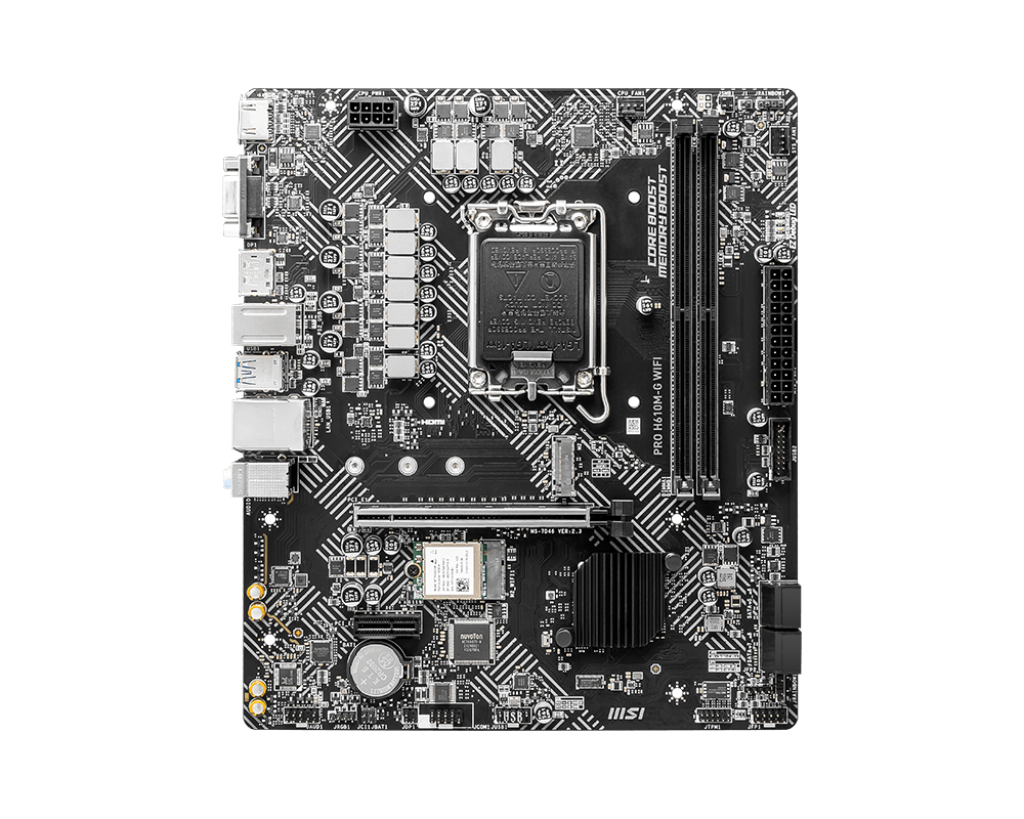

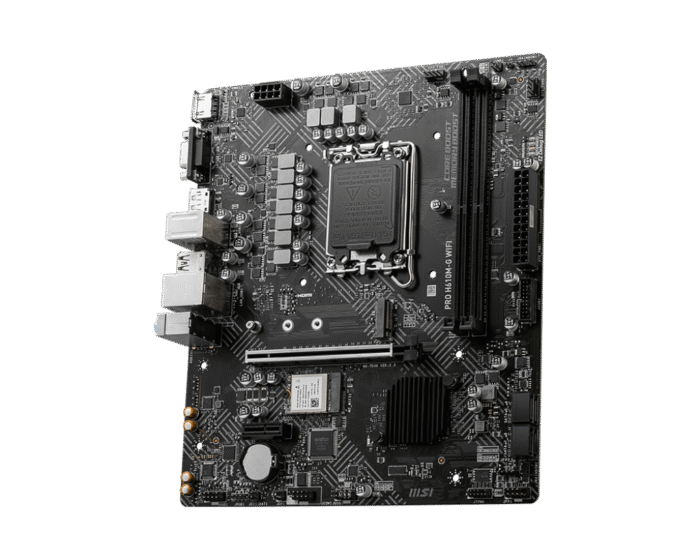

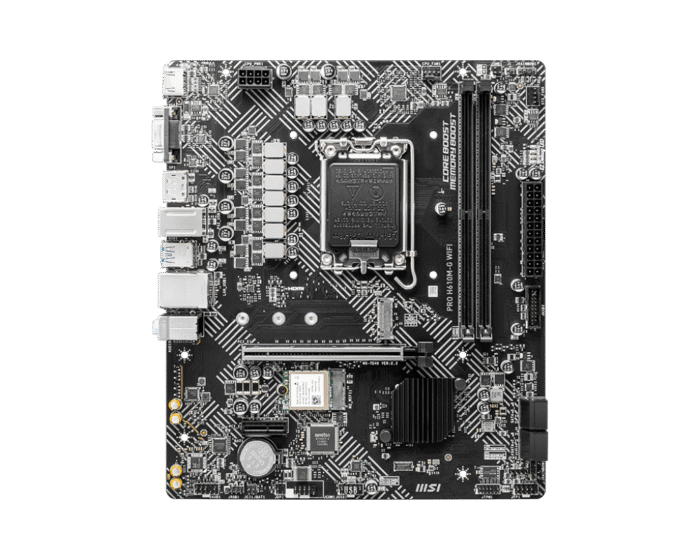

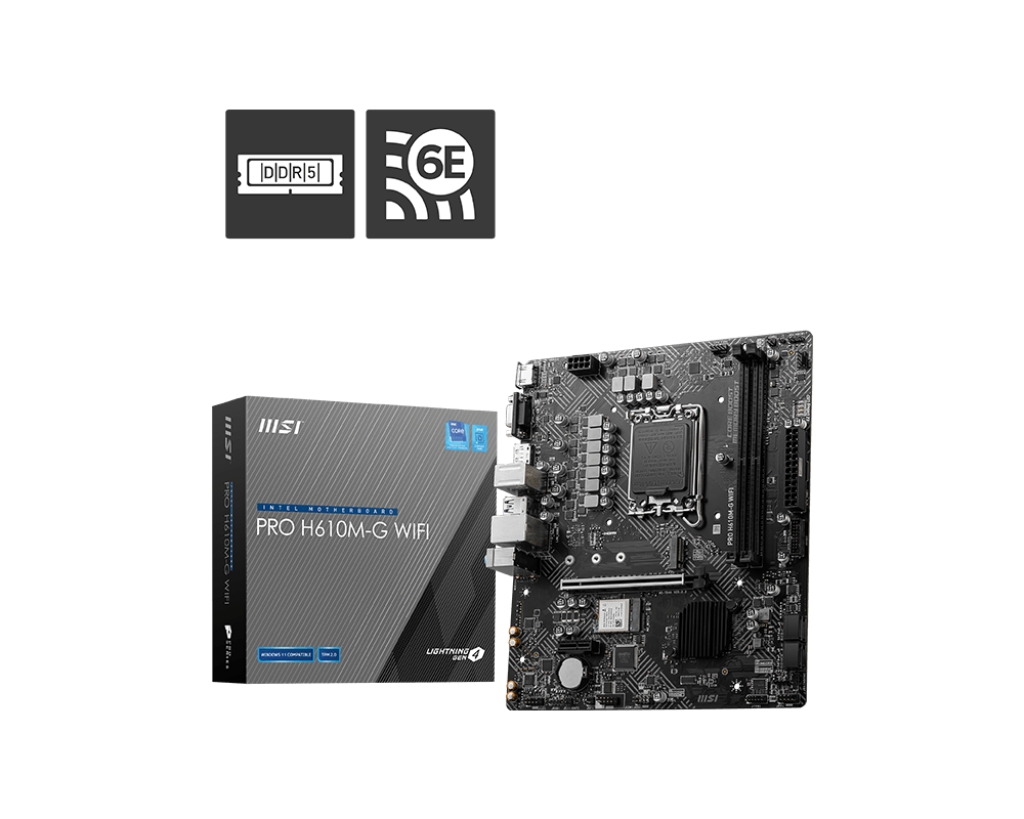

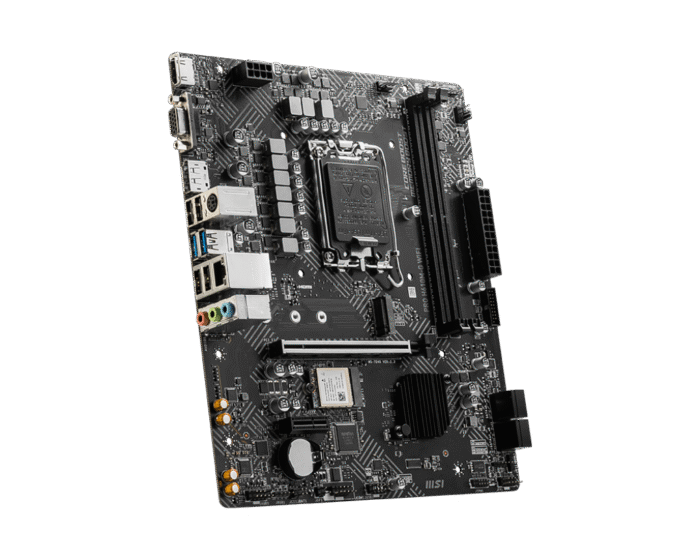

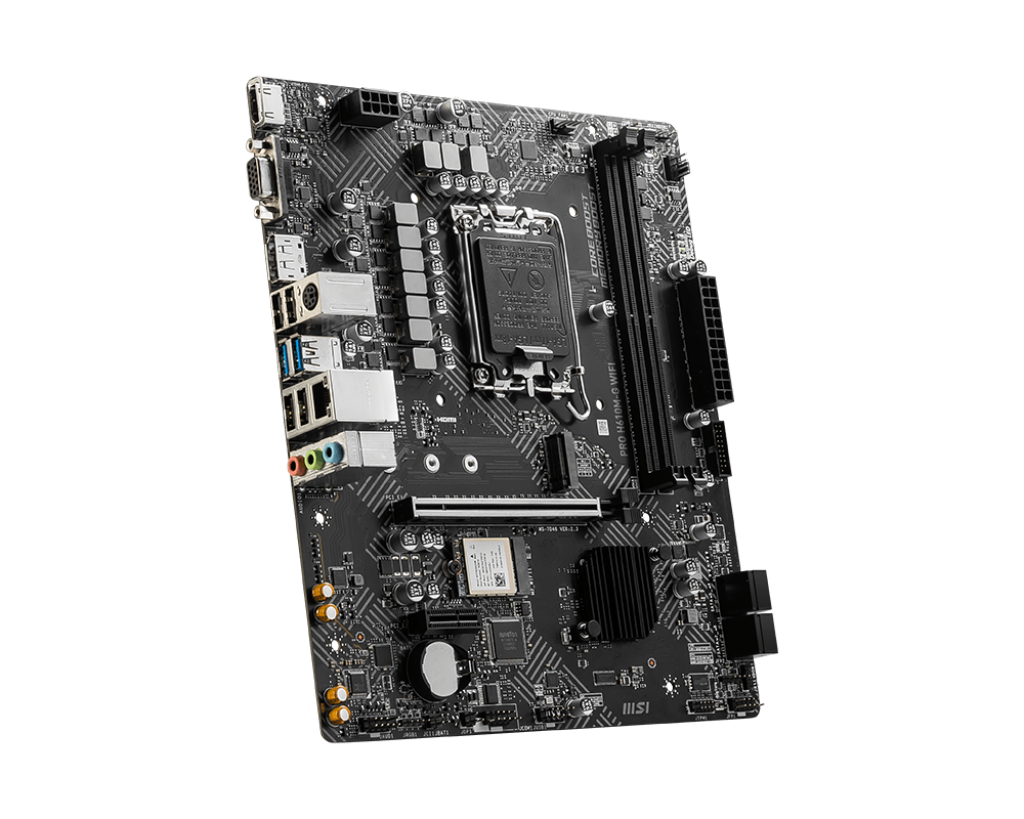

MSI PRO H610M-G Wifi DDR5 Micro-ATX Motherboard

The MSI PRO H610M-G WiFi DDR5 is a highly efficient, feature-rich Micro-ATX motherboard built for users seeking business-class performance, compact form factor, and modern connectivity. Tailored for Intel 12th, 13th, and 14th Gen Core, Pentium Gold, and Celeron processors, this motherboard delivers dependable system stability, faster memory performance, and premium features essential for both professional and casual use.

🧠 Professional-grade Performance & Power Design

The board supports Intel Core 12th, 13th, and 14th Gen CPUs, along with Pentium Gold and Celeron, on the LGA 1700 socket. Powered by the Intel® H610 chipset, it uses MSI’s Core Boost fully digital VRM architecture to provide precise and stable current, essential for smooth multitasking, office productivity, and light content workloads.

💾 Cutting-edge DDR5 Memory

Featuring two DDR5 DIMM slots, this board supports up to 96 GB of memory at JEDEC speeds of 5600 MT/s, with additional support for Intel XMP 3.0 OC profiles for elevated performance. MSI’s proprietary Memory Boost optimizes trace layout for cleaner data signals, maximizing stability and performance.

⚙️ Expansion & Storage Capabilities

• PCIe 4.0 x16 slot with reinforced Steel Armor supports high-end graphics cards with improved structural integrity and EMI protection.

• One PCIe 3.0 x1 slot allows for additional expansion such as Wi-Fi, audio, or capture cards.

• Storage options include one M.2 Gen3 x4 slot (up to 32 Gb/s bandwidth) and four SATA III 6 Gb/s ports for SSDs/HDDs.

🌐 Modern Network & Wireless Setup

Equipped with a pre-installed Wi-Fi 6E (802.11ax) + Bluetooth 5.3 module (via M.2 Key-E slot), offering support for 2.4/5/6 GHz bands with MU‑MIMO and BSS Color (up to 2400 Mbps). For wired connections, an Intel I219‑V Gigabit LAN controller ensures low-latency and reliable networking.

🔊 Integrated Display & Audio Solutions

• Display outputs include HDMI 2.1 and DisplayPort 1.4 (both supporting 4K 60 Hz), plus a legacy VGA port for backward compatibility—provided the CPU includes integrated graphics.

• Audio subsystem is powered by Realtek ALC897 7.1‑channel codec, enhanced by MSI’s Audio Boost for clean, immersive sound tailored for conferencing, entertainment, or light gaming.

🌡️ Cooling & Diagnostics

• A passive heatsink cools the chipset silently, while Frozr AI Cooling dynamically adjusts fan speeds based on CPU/GPU temperature detection—providing efficient cooling without manual tuning.

• The board also includes EZ Debug LEDs to simplify troubleshooting during post or boot errors.

🔌 Comprehensive I/O & Internal Connectivity

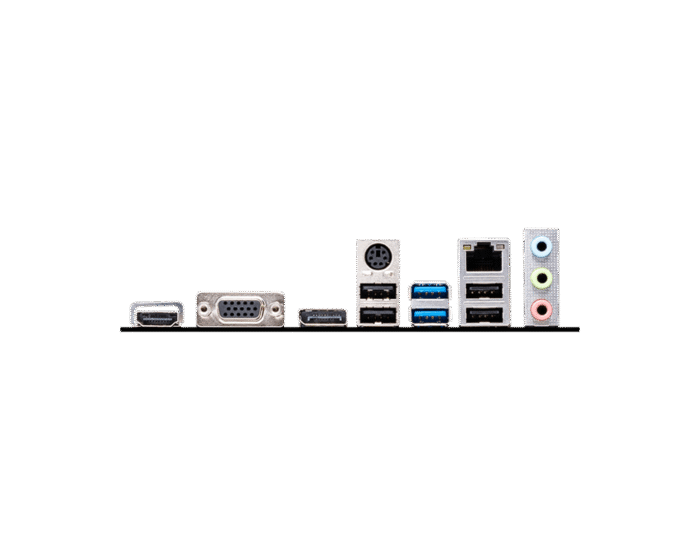

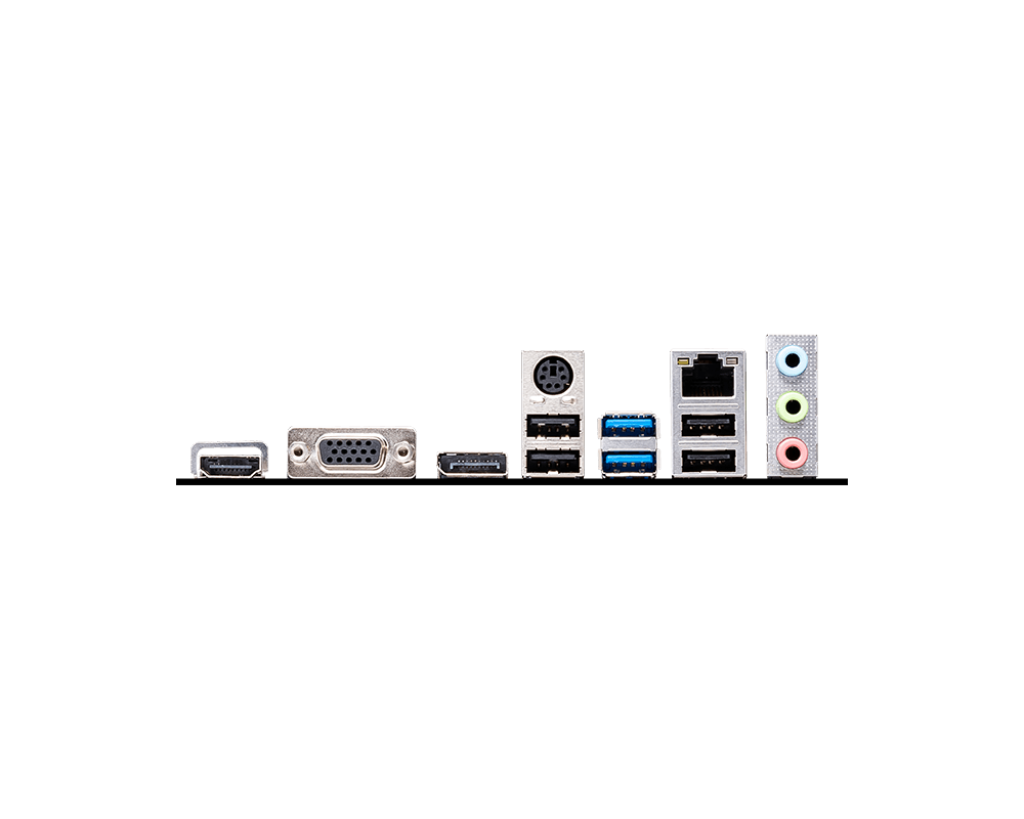

• Rear I/O features: HDMI 2.1, DisplayPort 1.4, VGA, 2× USB 3.2 Gen 1 (5 Gbps), 4× USB 2.0, Intel LAN port, audio jacks, PS/2 combo, and antenna connectors for Wi‑Fi/Bluetooth.

• Internal headers include CPU and system fan connectors, ATX and CPU power, front USB 3.2/2.0, two RGB/ARGB headers, TPM header, chassis intrusion, COM port, and four SATA connectors for flexible case builds.

🧰 Form Factor & Reliability

Built on a four-layer, server-grade printed circuit board (211 × 243.84 mm), this Micro‑ATX board uses thickened copper planes and military-grade capacitors to improve electrical stability and tolerance to temperature fluctuations.
MSI provides 3-year warranty coverage and compatibility with Windows 10/11 64-bit.

🟢 Why Choose the MSI PRO H610M-G WiFi DDR5?

• 🔹 Reliable and Business-Ready: Designed for productivity, long-term use, and compatibility

• 🔹 DDR5 Memory Support: Future-proof with enhanced speeds and power efficiency

• 🔹 Integrated Wi-Fi 6E: High-speed wireless out of the box

• 🔹 Compact Design: Ideal for smaller cases and space-conscious builds

• 🔹 Enhanced Cooling and Protection: From Core Boost to Frozr AI and Steel Armor
