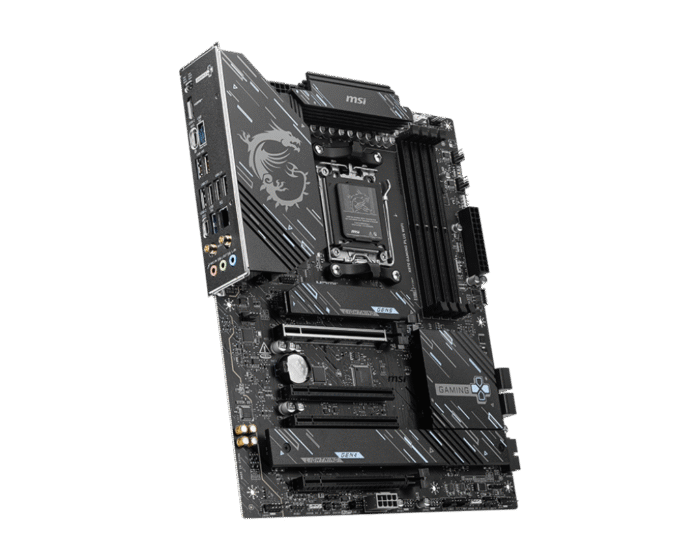

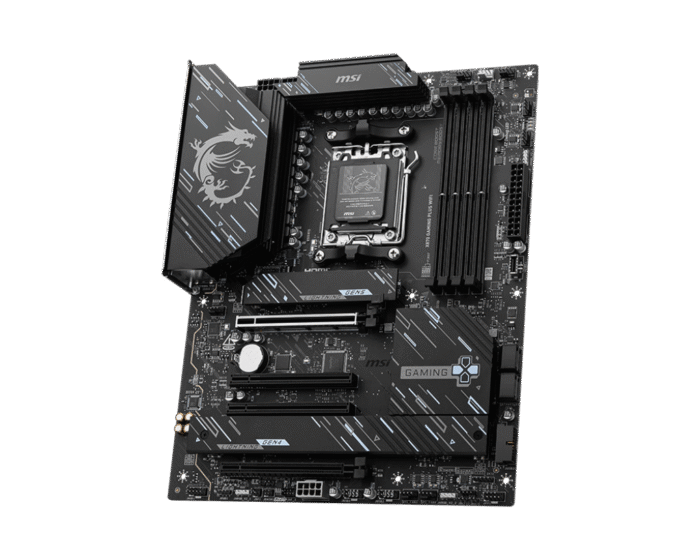

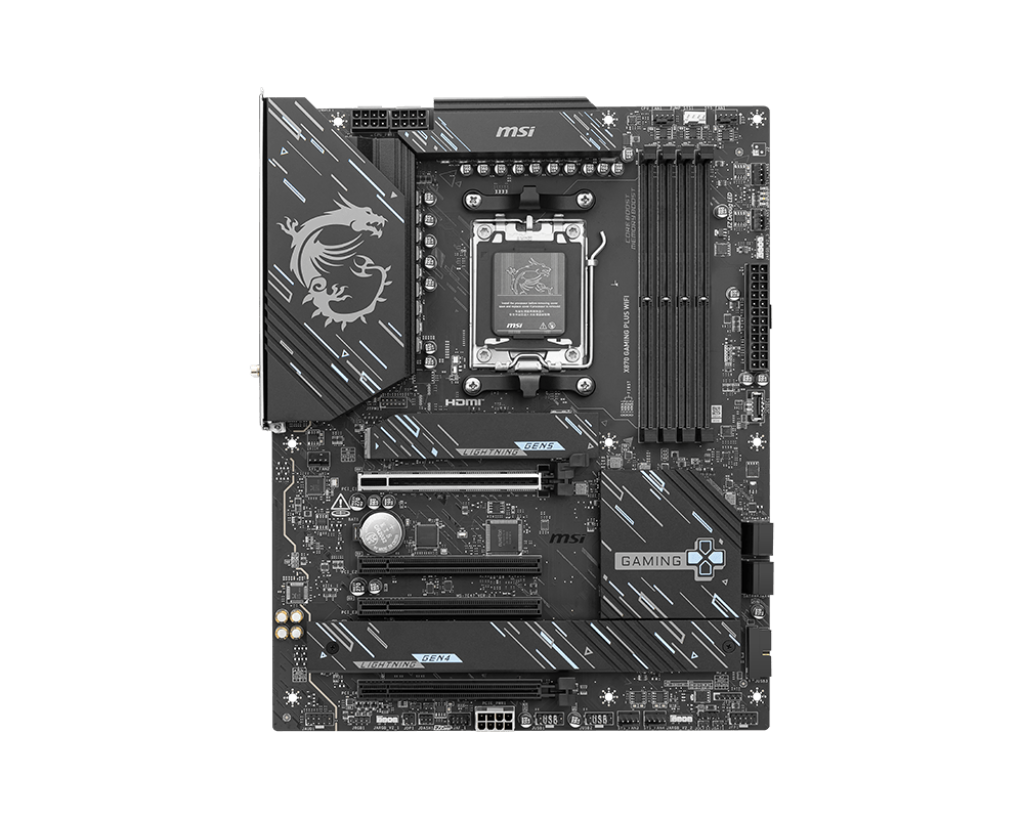

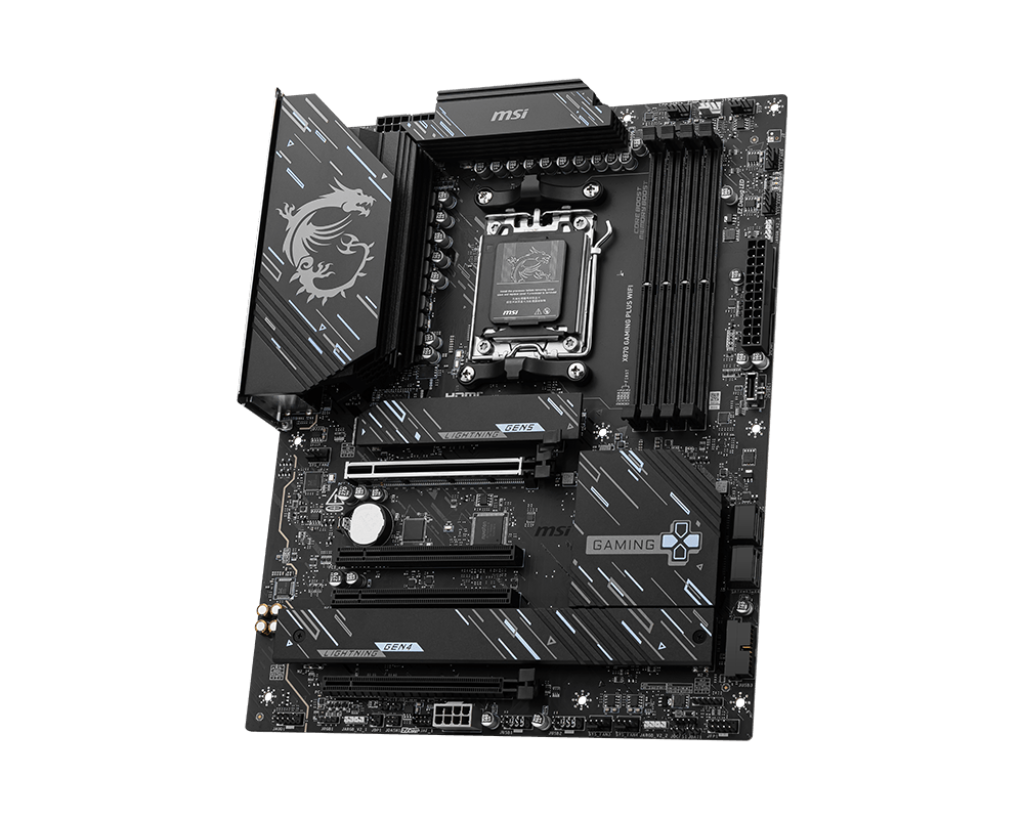

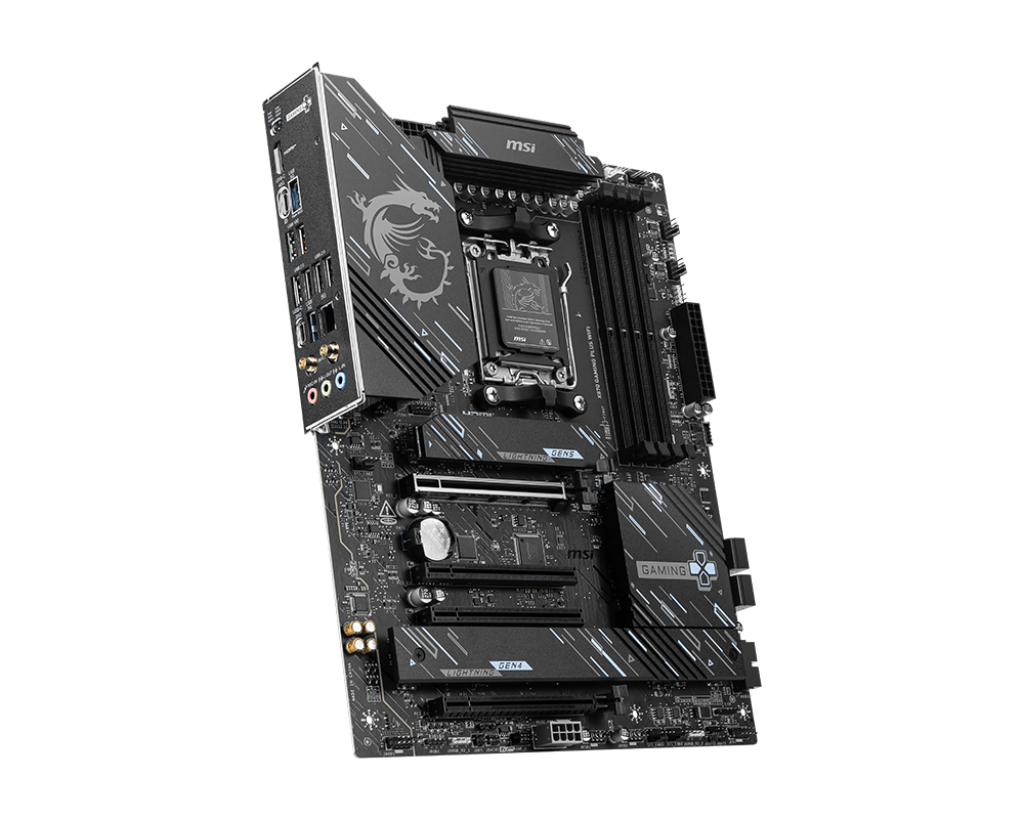

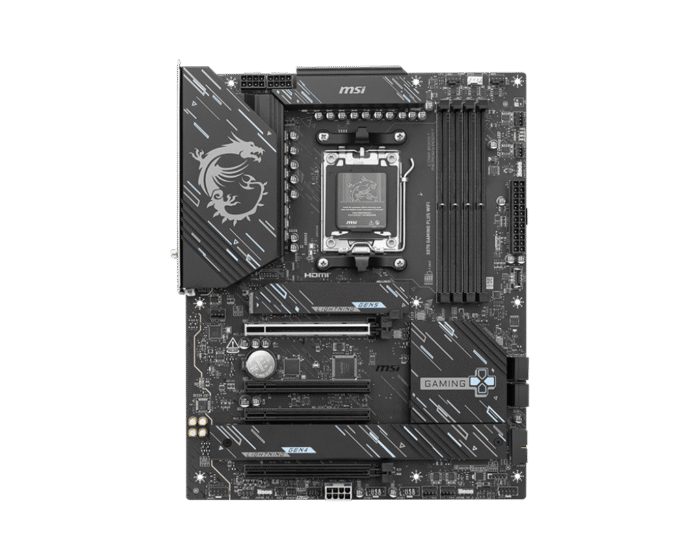

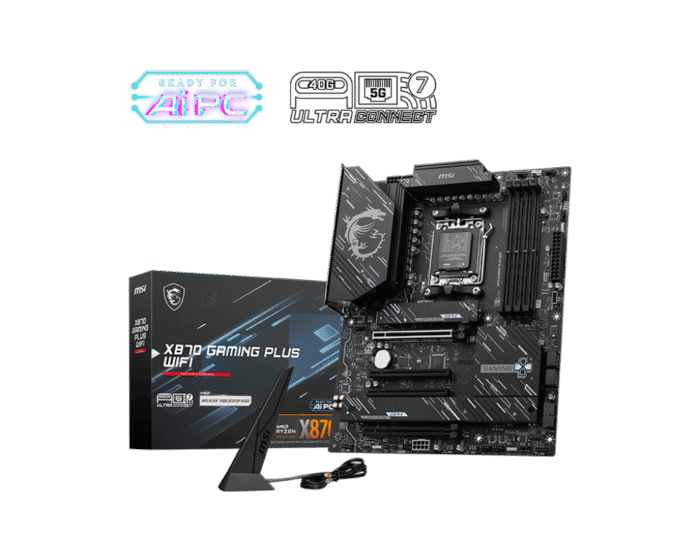

MSI X870 GAMING PLUS WIFI AM5 Motherboard

Original price was: 43,180.00৳.Current price is: 39,700.00৳.

Key Features

Model: X870 GAMING PLUS WIFI
Supported CPU: Ryzen 9000/8000/ 7000 Series Processors
Supported RAM: 4x DDR5 8200 (OC) MT/s
Graphics Output: 1x HDMI, 1x Type-C Display Port
Features: Realtek 8126VB 5G LAN, Wi-Fi 7, Bluetooth 5.4
Sockets Supported: AM5
Memory Slot: 4
Memory Max.: 256GB
Warranty: 3 Years

Out of stock

Add to compare

Add to wishlist

Category: Motherboard

Description

The MSI X870 GAMING PLUS WIFI is a high-performance motherboard designed for AMD Ryzen™ processors on the AM5 platform, delivering cutting-edge features for gamers, content creators, and power users. Built with robust power delivery, next-gen connectivity, and advanced cooling solutions, this motherboard ensures seamless performance for high-speed gaming and multitasking.

Next-Gen AMD AM5 Platform

Supporting the latest AMD Ryzen™ 9000 and 8000 series processors (and backward compatible with Ryzen™ 7000 series), the X870 GAMING PLUS WIFI leverages the AM5 socket with DDR5 memory support and PCIe® 5.0 connectivity. This ensures future-proof performance for demanding applications and gaming.

Blazing-Fast DDR5 Memory & PCIe® 5.0 Support

Equipped with DDR5 memory slots supporting speeds up to 8000+ MHz (OC), this motherboard maximizes bandwidth and responsiveness for ultra-smooth gameplay and content creation. The PCIe® 5.0 x16 slot provides double the bandwidth of PCIe® 4.0, ensuring optimal performance for next-gen GPUs and NVMe SSDs.

Lightning-Fast Storage with USB4® & PCIe® 5.0 M.2

Experience ultra-fast data transfers with:

USB4® support (up to 40Gbps) for high-speed external storage and peripherals.
PCIe® 5.0 M.2 slots (up to 128Gbps) for NVMe SSDs, drastically reducing load times.
Additional PCIe® 4.0 M.2 slots for expanded storage options.

Advanced Power Delivery & Cooling

Premium Power Design: Robust VRM with high-quality components ensures stable power delivery for overclocking and peak performance.
Extended Heatsink Design: Large heatsinks and thermal pads keep critical components cool under heavy loads.
M.2 Shield Frozr: Prevents SSD throttling by dissipating heat efficiently.

Wi-Fi 7 & 2.5G LAN for Lag-Free Networking

Wi-Fi 7 (802.11be) delivers ultra-low latency and faster wireless speeds (up to 5.8Gbps).
2.5G LAN ensures high-speed wired networking for competitive gaming and streaming.

Premium Audio & Gaming Features

Audio Boost 5: High-quality audio capacitors and shielding for immersive sound.
MSI Center Software: Customize RGB lighting, monitor system performance, and optimize settings.
EZ Debug LED: Quickly identify and troubleshoot hardware issues.

Stylish & Durable Design

Featuring an ATX form factor, a black and silver aesthetic, and RGB lighting (Mystic Light support), the X870 GAMING PLUS WIFI combines performance with a striking design.

Additional information

Chipset	AMD X870
CPU	Supports AMD Ryzen™ 9000/ 8000/ 7000 Series Desktop Processors Socket AM5
Memory	4x DDR5 UDIMM, Maximum Memory Capacity 256GB Memory Support DDR5 8200 – 5600 (OC) MT/s / 5600 – 4800 (JEDEC) MT/s Ryzen™ 9000 Series Processors max. overclocking frequency: • 1DPC 1R Max speed up to 8200+ MT/s • 1DPC 2R Max speed up to 6400+ MT/s • 2DPC 1R Max speed up to 6400+ MT/s • 2DPC 2R Max speed up to 6000+ MT/s Supports AMD POR Speed and JEDEC Speed Supports Memory Overclocking and AMD EXPOTM Supports Dual-Channel mode Supports Non-ECC, Un-buffered memory Supports CUDIMM, Clock Driver bypass mode only
Onboard Graphics	1x HDMI™ Support HDMITM 2.1, maximum resolution of 4K 60Hz* 1x Type-C DisplayPort USB4® port, supporting DisplayPort 1.4 with HBR3 over USB Type-C, maximum resolution of 4K 60Hz
Slot	4x PCI-E x16 slot: PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E4 Gen PCIe 4.0 supports up to x4 (From Chipset) PCI_E1 slot: • Supports PCIe 5.0 x16 (For Ryzen™ 9000/ 7000 Series processors) • Supports PCIe 4.0 x8 (For Ryzen™ 8700/ 8600/ 8400 Series processors) • Supports PCIe 4.0 x4 (For Ryzen™ 8500/ 8300 Series processor)
Audio	Realtek® ALC897 7.1-Channel High Definition Audio
Storage	3x M.2: M.2_1 Source (From CPU) PCIe 5.0 x4 , supports 2280/2260 devices M.2_2 Source (From Chipset) PCIe 4.0 x4 , supports 22110/2280 devices M.2_3 Source (From Chipset) PCIe 4.0 x2 , supports 2280/2260 devices 4x SATA 6G M2_1 slot: • Supports up to PCIe 5.0 x4 (For Ryzen™ 9000/ 7000 Series processors) • Supports up to PCIe 4.0 x4 (For Ryzen™ 8000 Series processors)
RAID	Supports RAID 0, RAID 1 and RAID 5 for M.2 NVMe storage devices

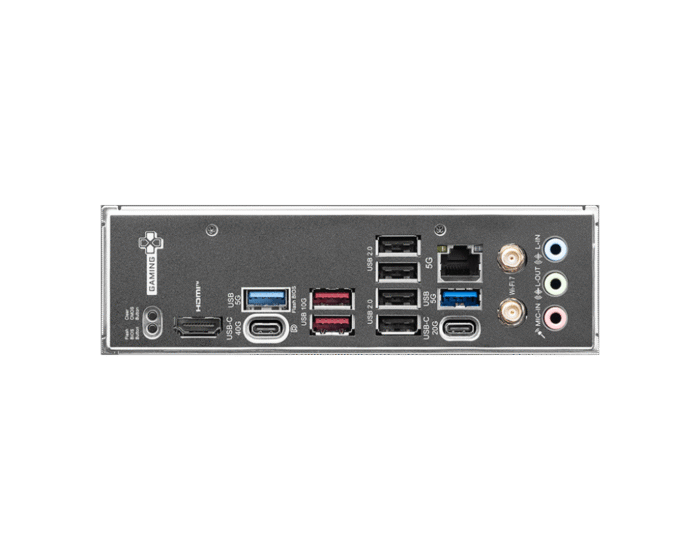

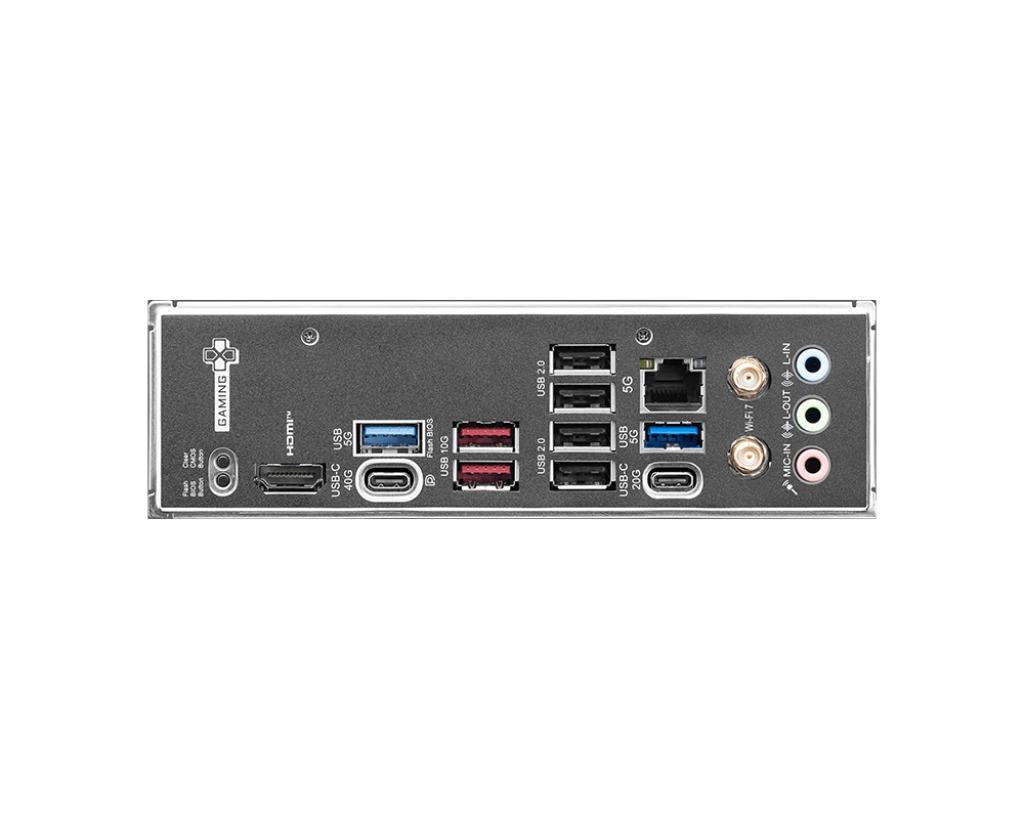

USB	4x USB 2.0 (Rear) 4x USB 2.0 (Front) 2x USB 5Gbps Type A (Rear) 2x USB 5Gbps Type A (Front) 2x USB 10Gbps Type A (Rear) 1x USB 10Gbps Type C (Front) 1x USB 20Gbps Type C (Rear) 1x USB 40Gbps Type C (Rear)
LAN	Realtek® 8126VB 5G LAN
Internal IO	1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x Power Connector(PCIE_PWR 8pin) 1x CPU Fan 1x Combo Fan (Pump_Sys Fan) 6x System Fan 1x EZ Conn-header (JAF_1) 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Tuning Controller connector(JDASH) 3x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 2x USB 5Gbps Type A ports 1x USB 10Gbps Type C ports
WIRELESS LAN & BLUETOOTH	Wi-Fi 7 The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz* (320MHz) up to 5.8Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax/ be Supports Bluetooth® 5.4**, MLO, 4KQAM
LED FEATURE	4x EZ Debug LED
Manufacturing Warranty	3 Years
