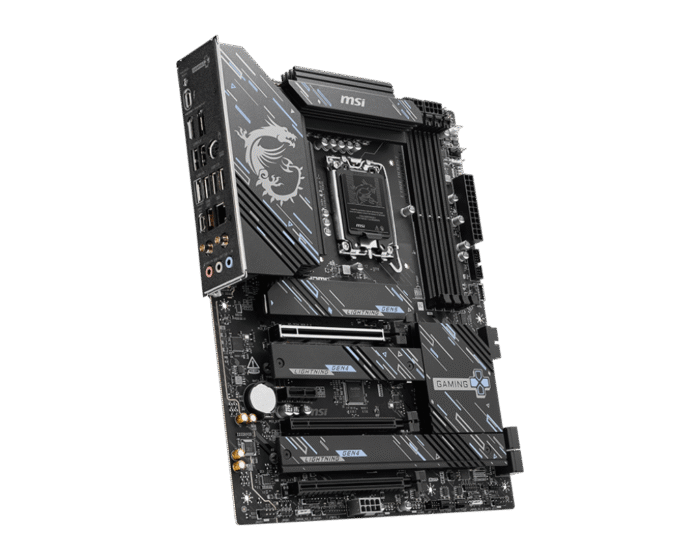

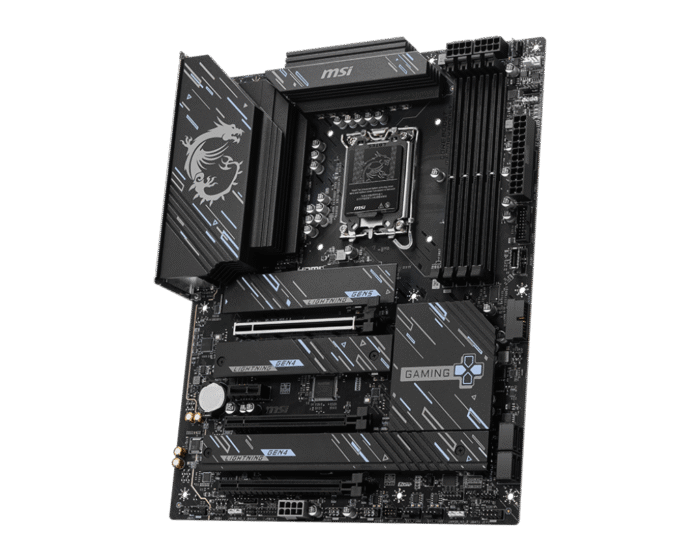

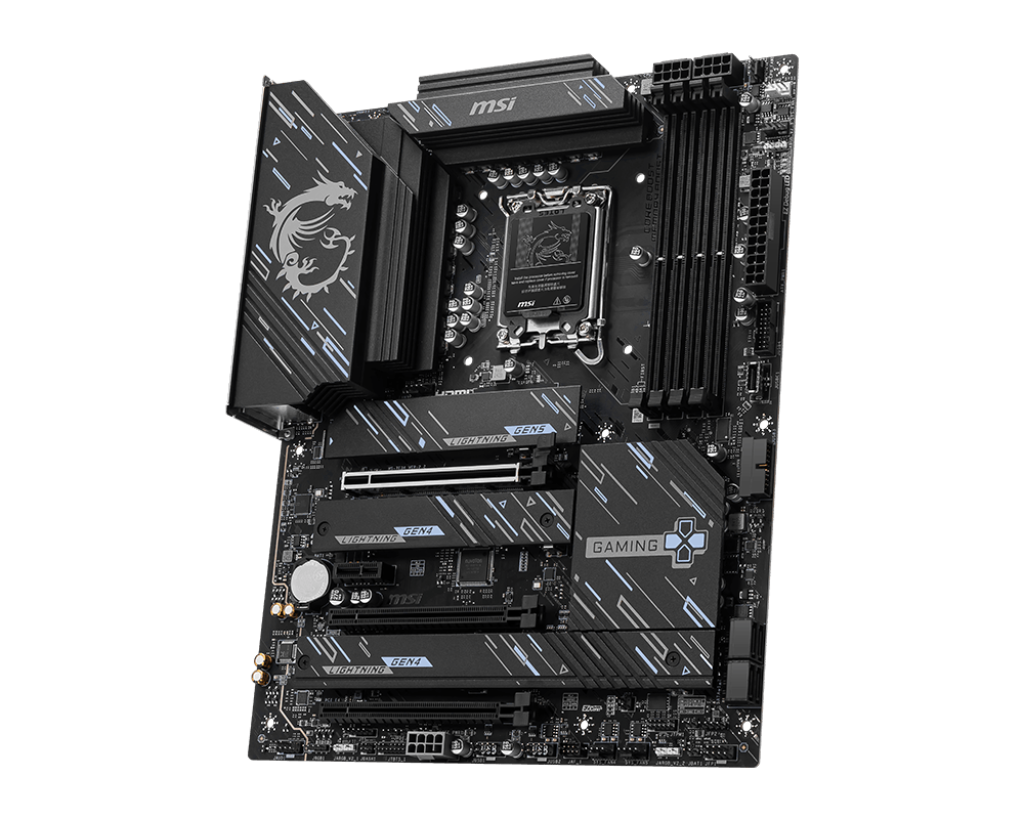

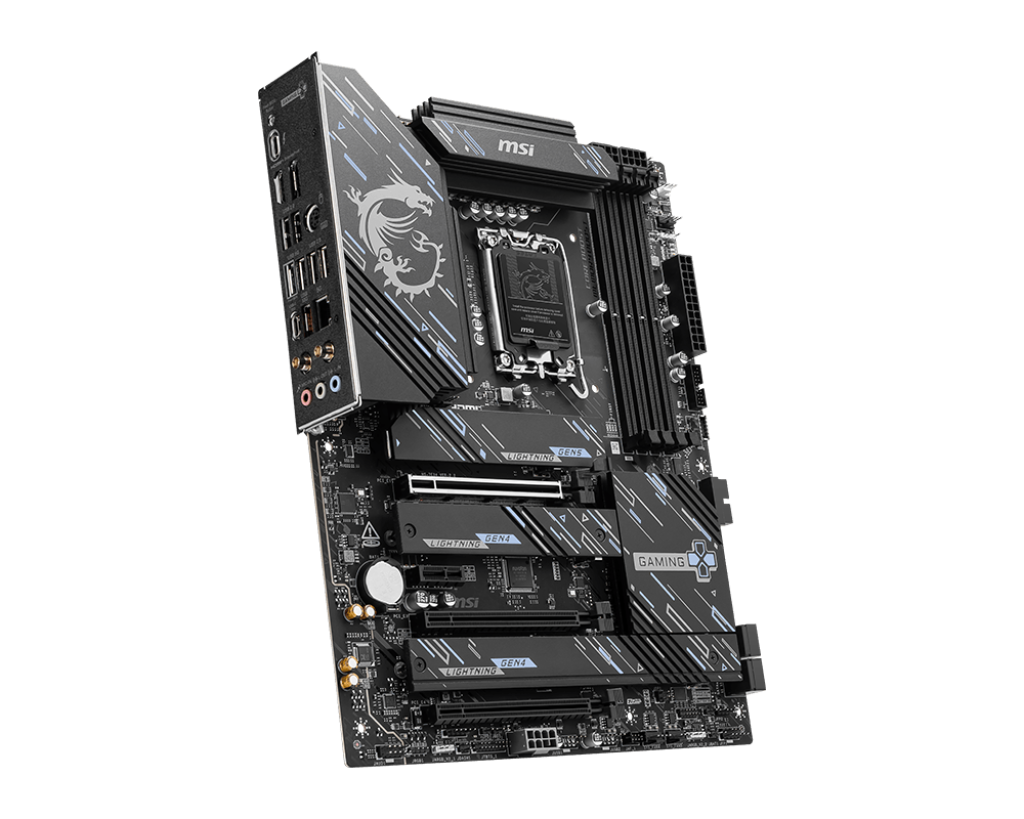

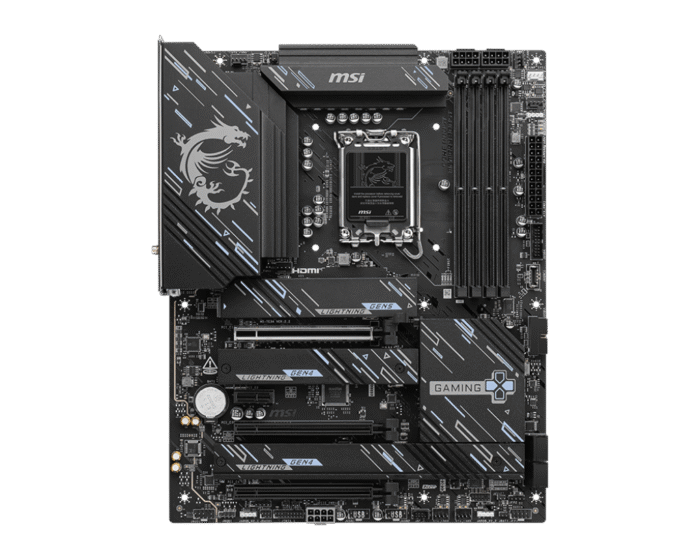

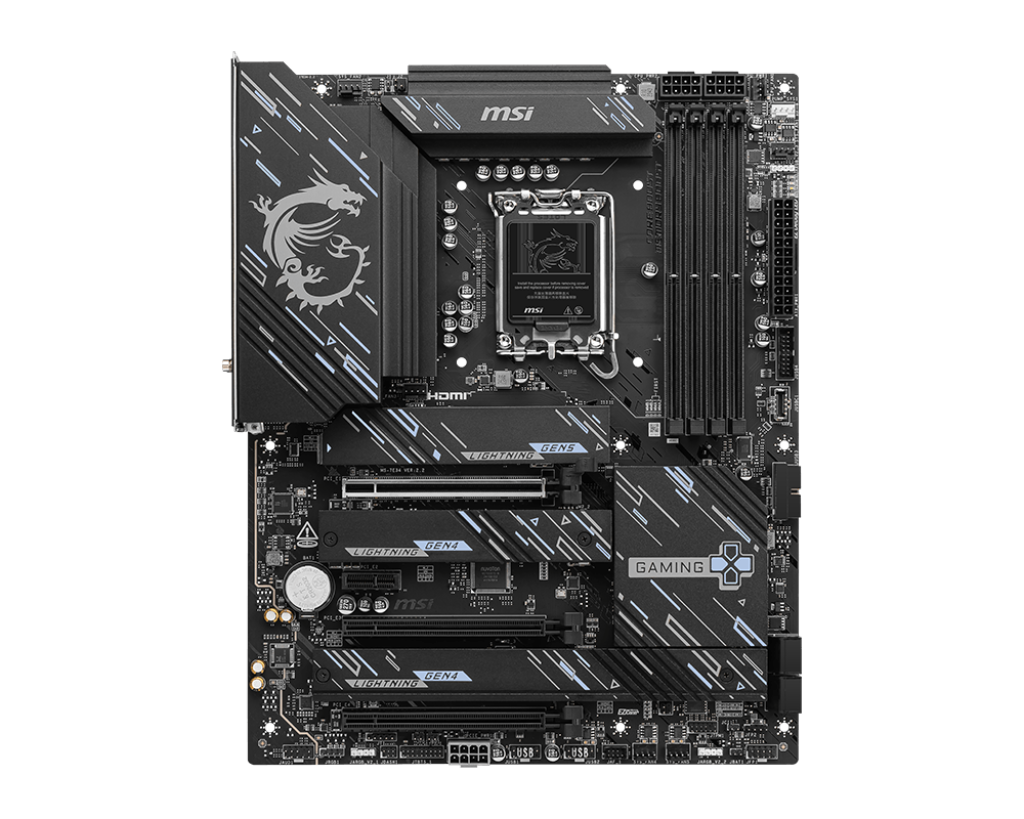

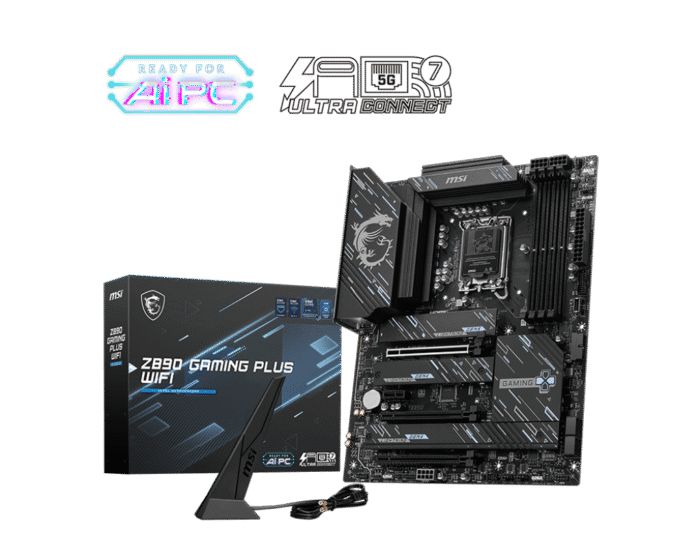

MSI Z890 GAMING PLUS WIFI ATX Motherboard

🎮 MSI Z890 GAMING PLUS WIFI – Premium ATX Gaming Motherboard

The MSI Z890 GAMING PLUS WIFI is a feature-rich ATX motherboard built to empower elite Intel Core Ultra (LGA 1851) gaming and AI-optimized PCs. Marrying high-end performance, advanced connectivity, and intuitive design, it offers everything enthusiasts need for serious builds.

🔧 Key Features

CPU & Memory Support

• Compatible with Intel® Core™ Ultra “Series 2” processors on the LGA 1851 socket

• Supports dual-channel DDR5 memory, reaching over 9200 MT/s (OC)

Ultra-Lean Power Delivery

• Robust 14+1+1+1 Duet Rail power design with twin 8-pin CPU connectors and 55 A DrMOS for stable supply to CPU, System Agent, GT, and memory cores

• Ensures peak performance, even under heavy overclocking

Superior Thermal Management

• Frozr Guard thermal solution: extended heatsink, double-sided M.2 Shield Frozr II, heavy plated VRM heatsink

• 7 W/mK thermal pads ensure efficient heat dissipation across VRM components

⚡ Connectivity & Expansion

PCIe & Storage

• PCIe 5.0 x16 slot for bleeding‑edge GPU performance

• “Lightning Gen 5 x4” M.2 slot with Gen 5 speeds for future-proofed NVMe storage

• One rear Thunderbolt 4 USB‑C port: 40 Gbps, USB4 compliance, 8K display support, daisy‑chain capable, 15 W power delivery

• Additional ports include a mix of USB 2.0, USB 5 Gbps Type‑A, USB 10 Gbps Type‑A, USB 10 Gbps Type‑C, and a USB 20 Gbps Type‑C for front panel

Networking

• Wired: Intel® Killer E5000 5 Gbps LAN for high-bandwidth, low-latency performance Wireless: Pre-installed Intel® Killer BE1750x Wi‑Fi 7 and Bluetooth 5.4, supporting MU‑MIMO and up to 5.8 Gbps throughput

Audio & Back Panel

• Audio Boost technology with isolated high-definition audio circuitry, premium capacitors, and de‑pop protection

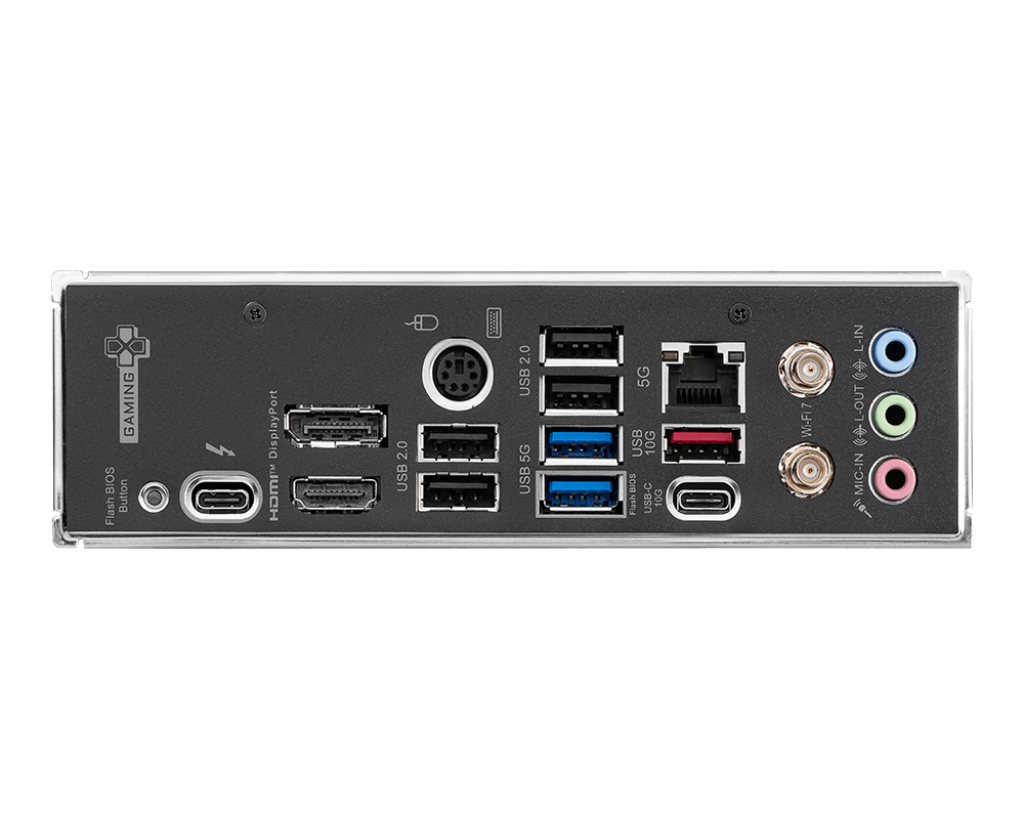

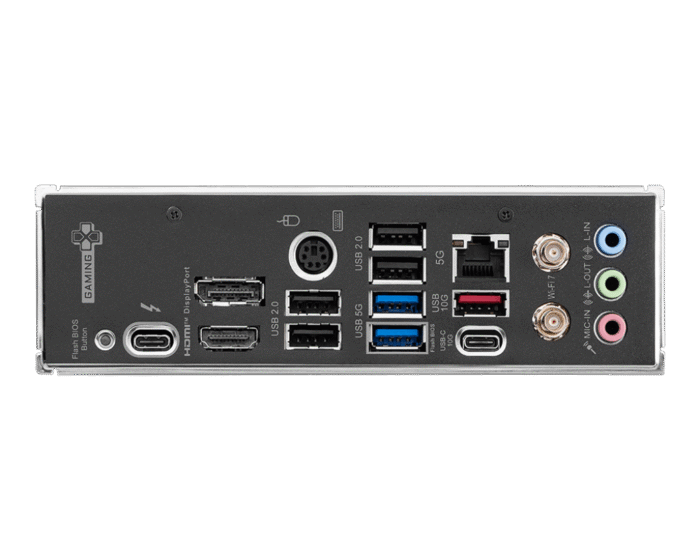

• Rear panel features include DisplayPort, HDMI, 5 Gbps LAN port, Thunderbolt 4 Type‑C, multiple USB ports, debug LEDs, and BIOS Flash button

🛠️ EZ-DIY Design & User Experience

• EZ M.2 Shield Frozr II + Clip II: tool-free installation/removal of M.2 SSDs with thermal shielding

• EZ PCIe Clip II and EZ Antenna (magnetic stand) streamline component setup

• Pre-installed I/O Shield, EZ Connect Headers, and user-friendly layout ensure straightforward assembly in any case

🧠 Intelligent Overclocking & Optimization

• Core Boost & Memory Boost automatically optimize CPU and memory performance

• BIOS X and MSI Center offer intuitive overclocking, fan tuning, and system monitoring tools

📦 Build & Compatibility

• ATX form factor (243.84 × 304.8 mm), with six-layer PCB using 2 oz thickened copper for durability and signal integrity

• Compatibility with RAID 0/1/5/10 for both SATA and M.2 NVMe storage devices

• Supports Windows 11 64-bit

  ✅ Why Choose the Z890 GAMING PLUS WIFI?

  🔹 Future-Proof Design
  Supports Intel Core Ultra CPUs, PCIe 5.0, and up to 256GB DDR5—perfect for long-term performance and upgrades.

  🔹 Built for Gamers
  5G LAN and Wi-Fi 7 ensure ultra-low latency; PCIe 5.0 x16 delivers top-tier GPU bandwidth for 4K/8K gaming.

  🔹 Creator & Streamer Ready
  Thunderbolt 4 and Gen5 M.2 slots enable ultra-fast file transfers, 8K output, and massive storage speed.

  🔹 AI & Overclocking Power
  Strong VRM (14+1+1+1), 55A DrMOS, AI tuning, and BIOS FlashBack make it ideal for power users and AI developers.
